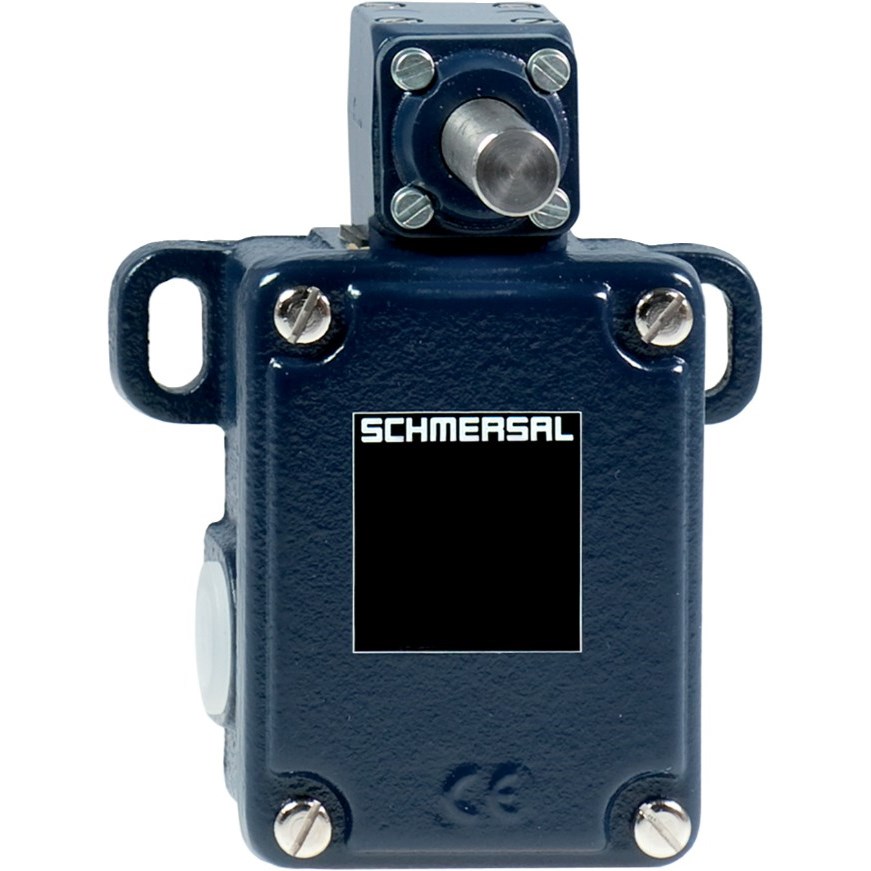

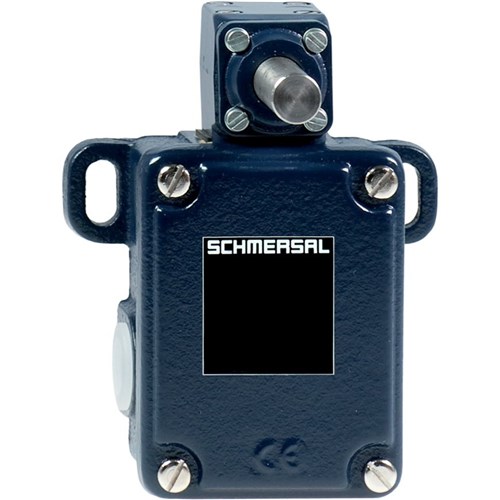

Schmersal 101187020 Position Switch

Product Code: 101187020

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250V AC
Terminal Type
Screw terminals
Thermal Test Current
16A

Mechanical

Housing Material
Grey cast iron, galvanised

Dimensions & Physical Data

Depth
63mm
Height
99mm
Weight
1,430g
Width
106mm

Environmental

IP Rating
IP65
