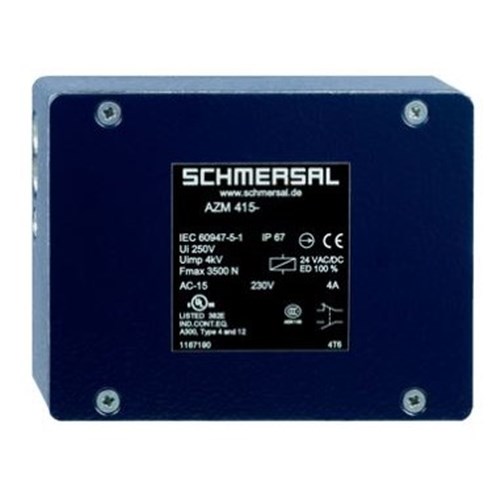

Schmersal 101186884 Solenid Interlock Switch 24VAC/VDC 2NC+2NO

Product Code: 101186884

  • 24 VAC/VDC, 6 A rated voltage/current
  • Durable aluminium housing, IP67 protection
  • 2NC+2NO contact config with silver material
  • Mechanical life of 1 million cycles
  • cULus, CCC, UKCA certified
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Actuator Type
Ball latch (adjustable, 400 N)
Cable Entry
2 x M20 x 1.5
Guard Locking Force
3500 N
Housing Material
Aluminium (painted)

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
905 g
Width
130 mm

Environmental

Operating Temperature
-25 to 50 °C
IP Rating
IP65, IP67

Documents

IPD Product Catalogue V17
