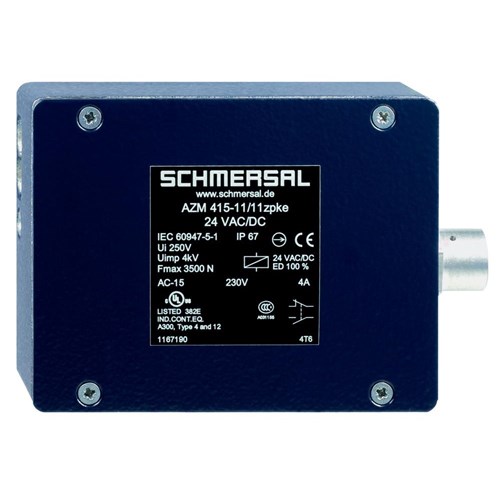

Schmersal 101186853 Solenid Interlock Switch 24VAC/VDC NC

Product Code: 101186853

  • Durable aluminium housing, IP67 protection
  • Operates at 24 VAC/VDC, 4 A current
  • Long lifespan with 1 million cycles
  • Complies with cULus, CCC, UKCA standards
  • Slow action mechanism for precise control
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
71.5 mm
Height
100 mm
Weight
1,037 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
