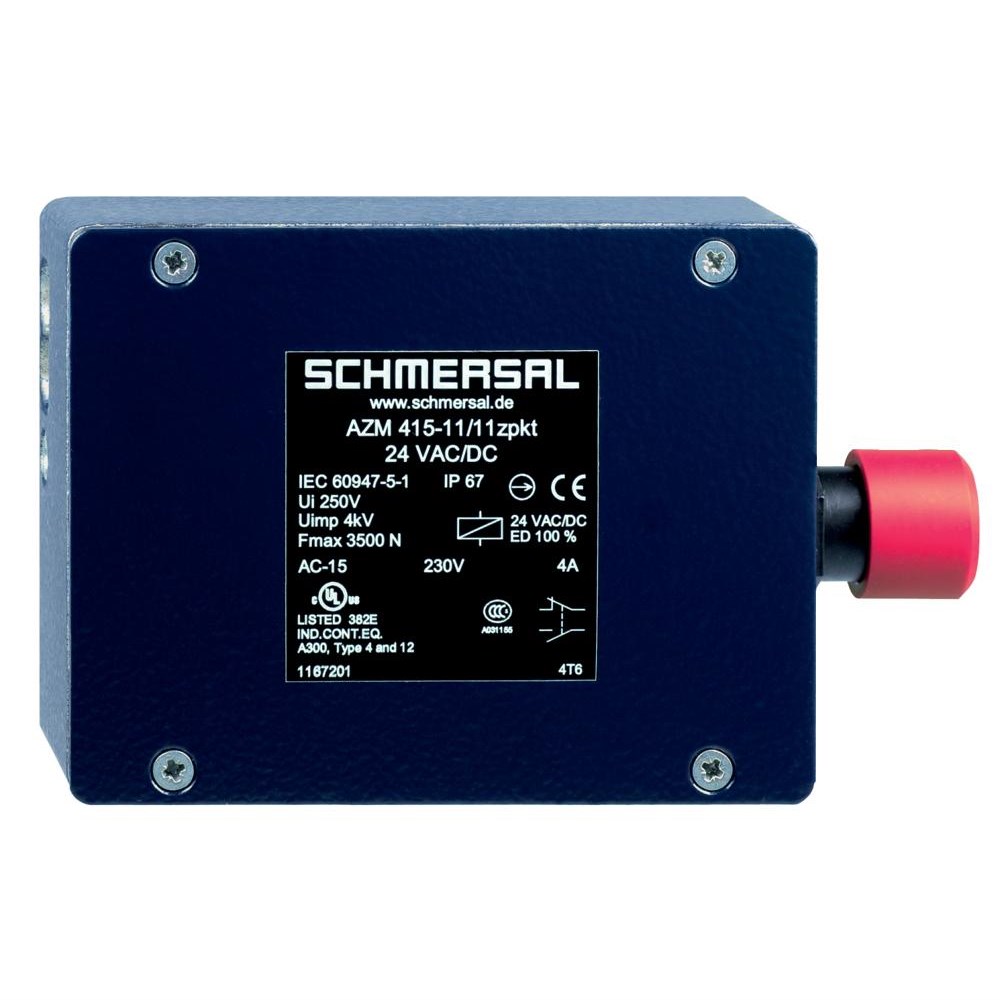

Schmersal 101186852 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101186852

  • Robust aluminium housing with IP67 protection
  • Supports 24 VAC/VDC operation at 4 A
  • Durable with 1 million mechanical cycles
  • Slow action NO+NC contact configuration
  • Complies with cULus, CCC, and UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Weight
975 g

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
