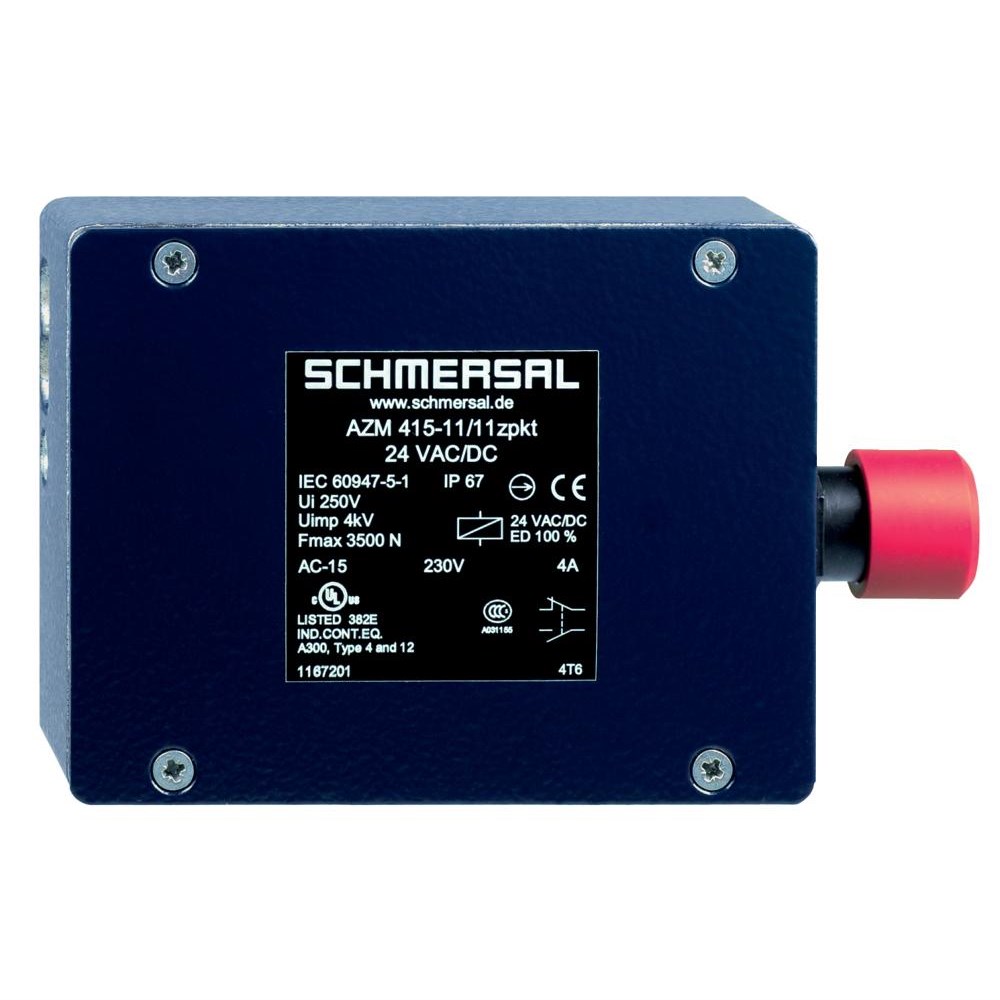

Schmersal 101186831 Solenid Interlock Switch 24VAC/VDC NC

Product Code: 101186831

  • Durable aluminium housing, IP67 protection
  • Designed for 1 million mechanical cycles
  • Supports both 24 VAC/VDC power sources
  • Compliant with cULus, CCC, UKCA standards
  • Compact size: 46.5x152x100 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
4
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
930 g
Width
152 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
