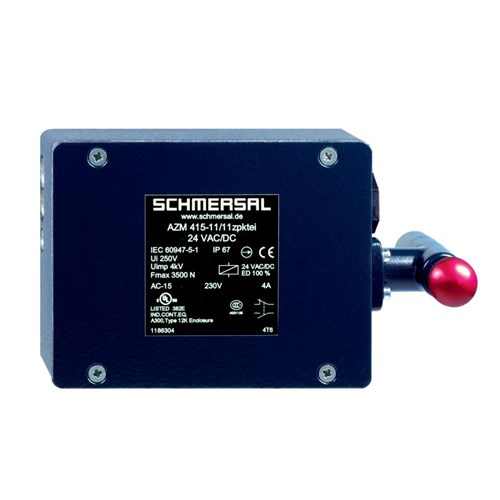

Schmersal 101186304 Solenid Interlock Switch 24VAC/VDC 2NC+2NO

Product Code: 101186304

  • Dual contacts: 2NC+2NO configuration
  • Durable aluminium housing, IP67 rated
  • Withstands up to 1 million cycles
  • Operates at 24 VAC/VDC, 10 W power
  • Complies with cULus and UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
80 mm
Height
100 mm
Weight
995 g
Width
172 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65
