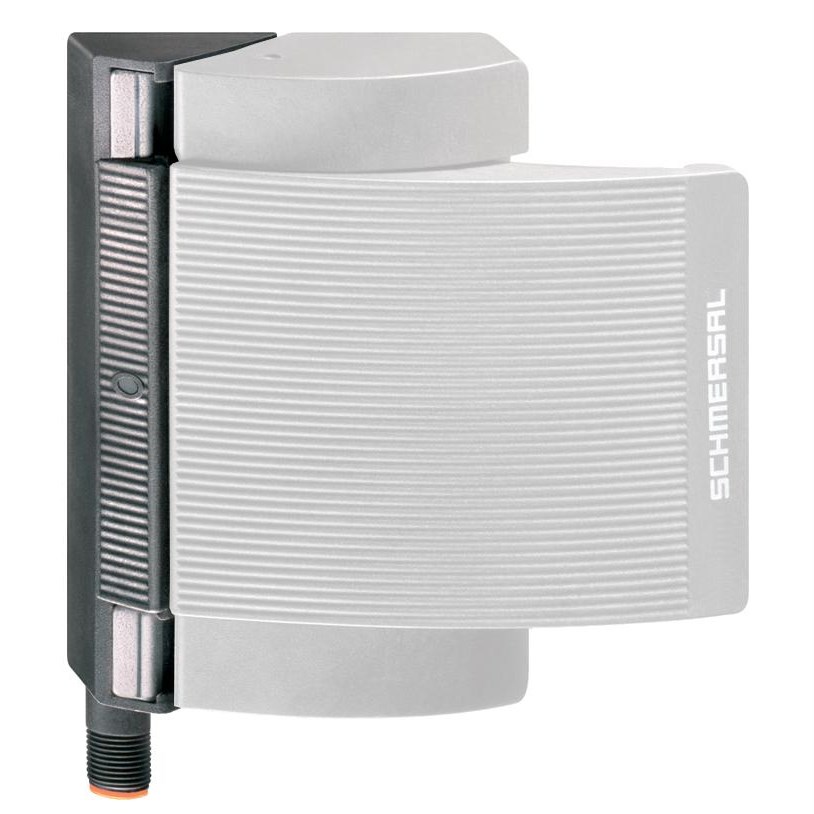

Schmersal 101186266 Magnetic Safety Sensor 1m Cable

Product Code: 101186266

  • Operates at 100 VAC, 0.01 A
  • Durable with 25 million cycles
  • IP67 rated for protection
  • Quasi-flush mounting design
  • Glass fibre reinforced housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS-B20

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
100V AC; 24V DC

Mechanical

Actuator Type
BNS-B20-B01
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
43.3mm
Height
140mm
Weight
0.143kg
Width
119.5mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
