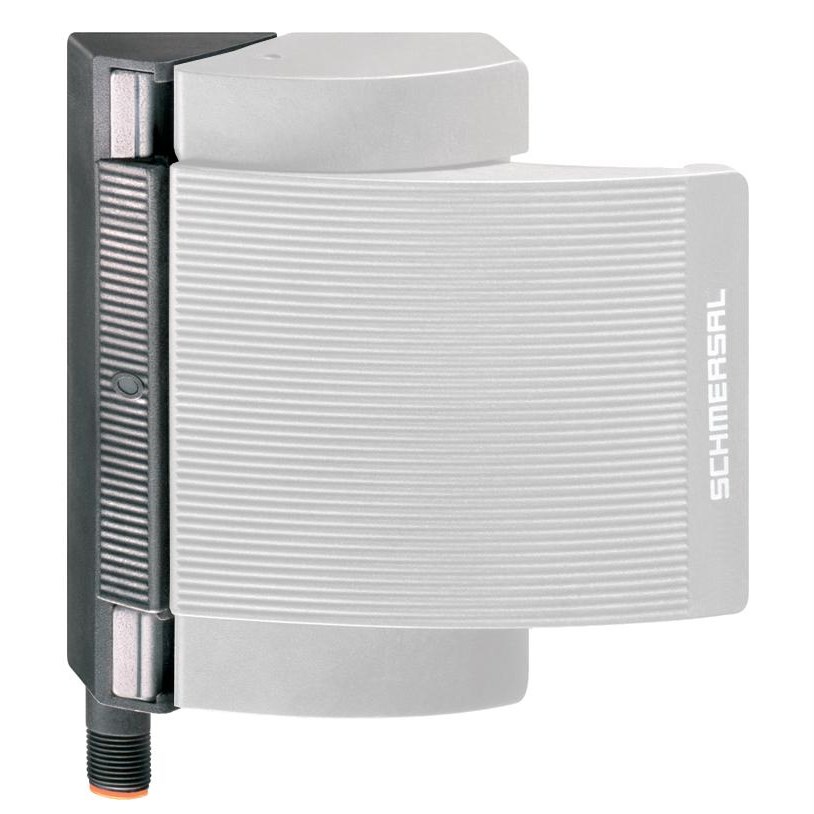

Schmersal 101186261 Magnetic Safety Sensor 1NO+2NC

Product Code: 101186261

  • Compact size: 43.3mm x 119.5mm x 140mm
  • Durable glass fibre reinforced thermoplastic housing
  • High protection rating: IP67
  • Reliable contact config: 1NO+2NC
  • Complies with BG-GS-ET-14, cULus, EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS-B20

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector M12
Rated Current (In)
0.24A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BNS-B20-B01
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
43.3mm
Height
140mm
Weight
0.08kg
Width
119.5mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
