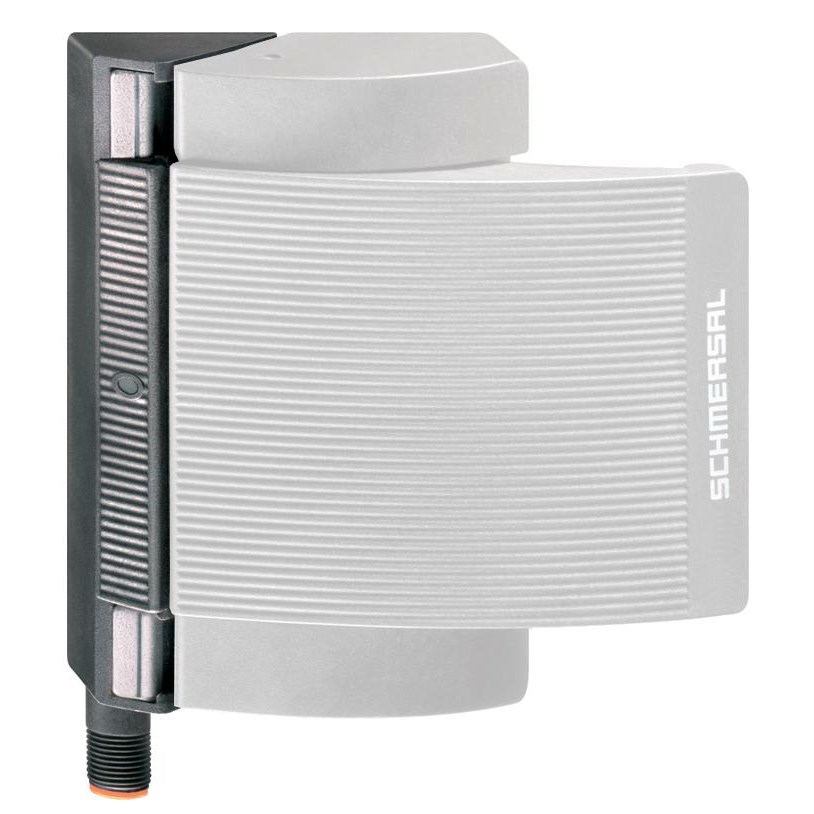

Schmersal 101186260 Magnetic Safety Sensor

Product Code: 101186260

  • 24 VDC, 0.24 A, 3 W rated specs
  • IP67 protection for harsh environments
  • Operates in -25 to 70°C range
  • Durable with 25 million cycle life
  • Compact size: 43.3 x 119.5 x 140 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS-B20

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Plug Type
Connector M12
Rated Current (In)
0.24A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BNS-B20-B01
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
43.3mm
Height
140mm
Weight
0.105kg
Width
119.5mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
