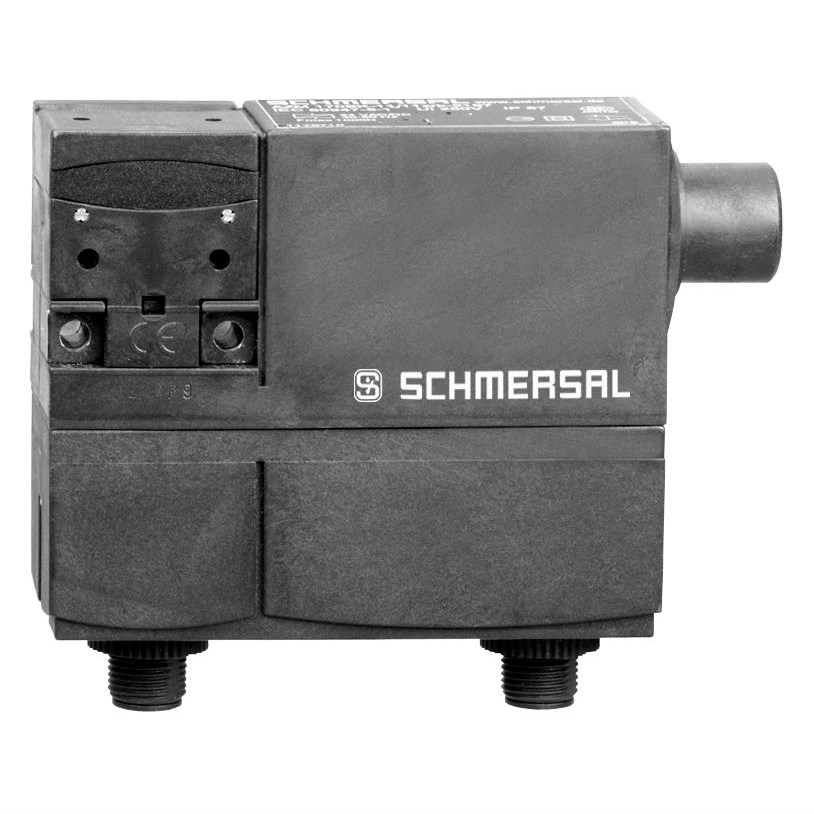

Schmersal 101186196 Solenid Interlock Switch 24VAC/VDC

Product Code: 101186196

  • Operates at 24 VAC/VDC
  • Durable with 1,000,000 cycles
  • Robust IP67 protection rating
  • Works in -25 to 60°C conditions
  • Compact size: 30x108x84 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
2
Rated Current (In)
0.083333
Rated Voltage (Ur)
24 V DC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
92.5 mm
Weight
310 g
Width
108 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
