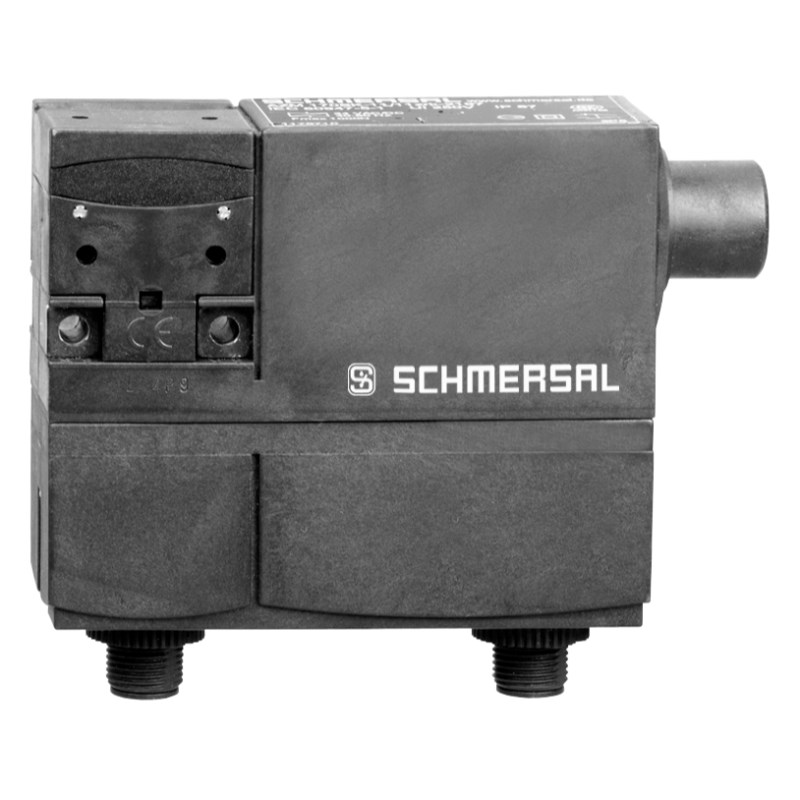

Schmersal 101186192 Solenid Interlock Switch 24VAC/VDC 2NC

Product Code: 101186192

  • Operates at 24 VAC/VDC
  • Durable with 1M mechanical cycles
  • IP67 rated for robust protection
  • Slow action mechanism, 2 m/s speed
  • Reinforced thermoplastic housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
1
Rated Current (In)
0.083333
Rated Voltage (Ur)
24 V DC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
92.5 mm
Weight
337 g
Width
108 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
