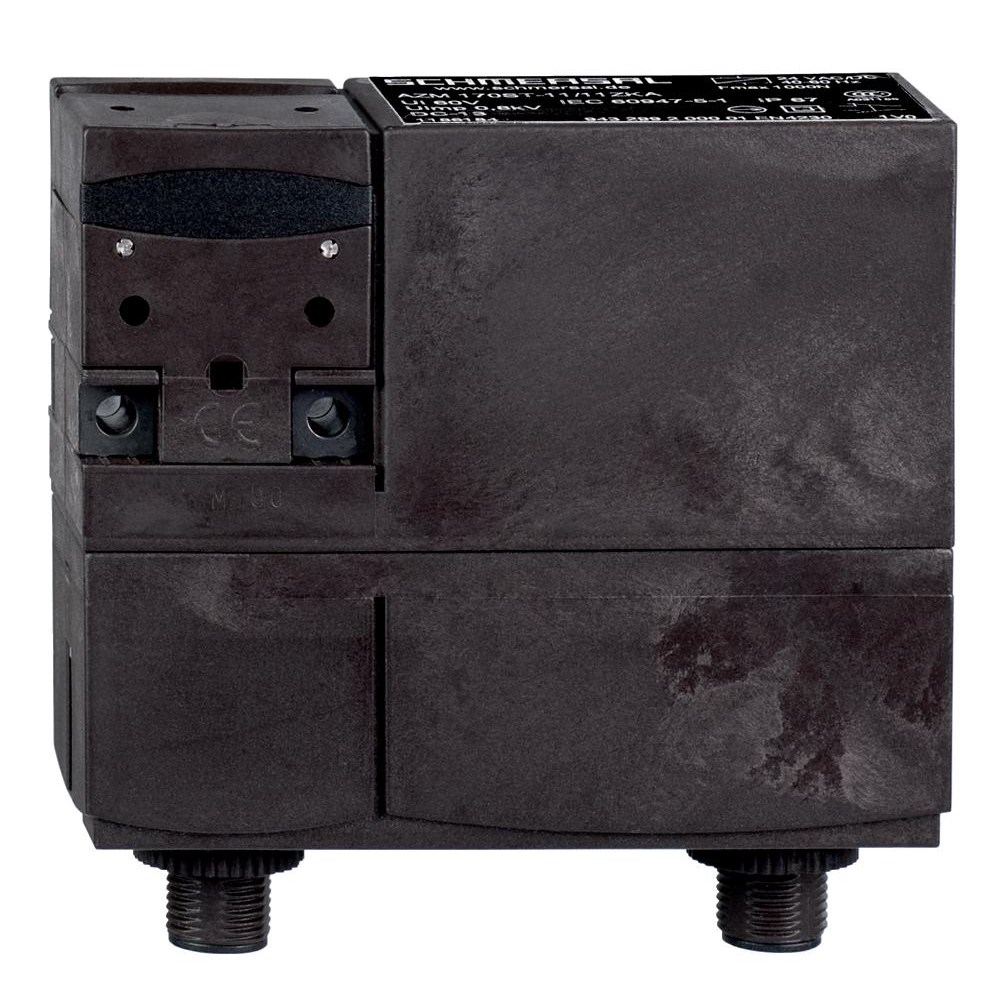

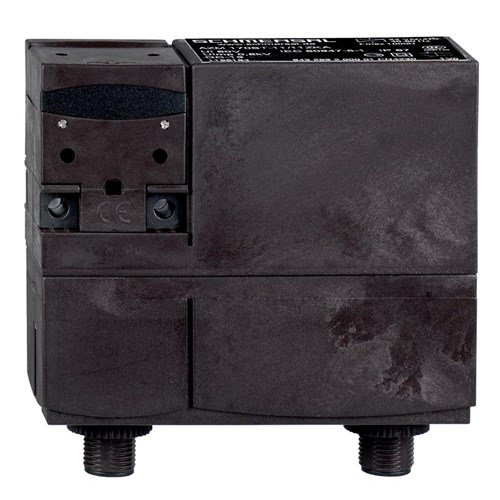

Schmersal 101186185 Solenid Interlock Switch 24VAC/VDC 1NO+1NC

Product Code: 101186185

  • Operates at 24 VAC/VDC
  • Durable with 1 million cycle life
  • Robust IP67 protection rating
  • Suitable for -25 to 60°C environments
  • Certified by IFA, cULus, CCC, UKCA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.083333
Rated Voltage (Ur)
24 V DC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
92.5 mm
Weight
300 g
Width
90 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67
