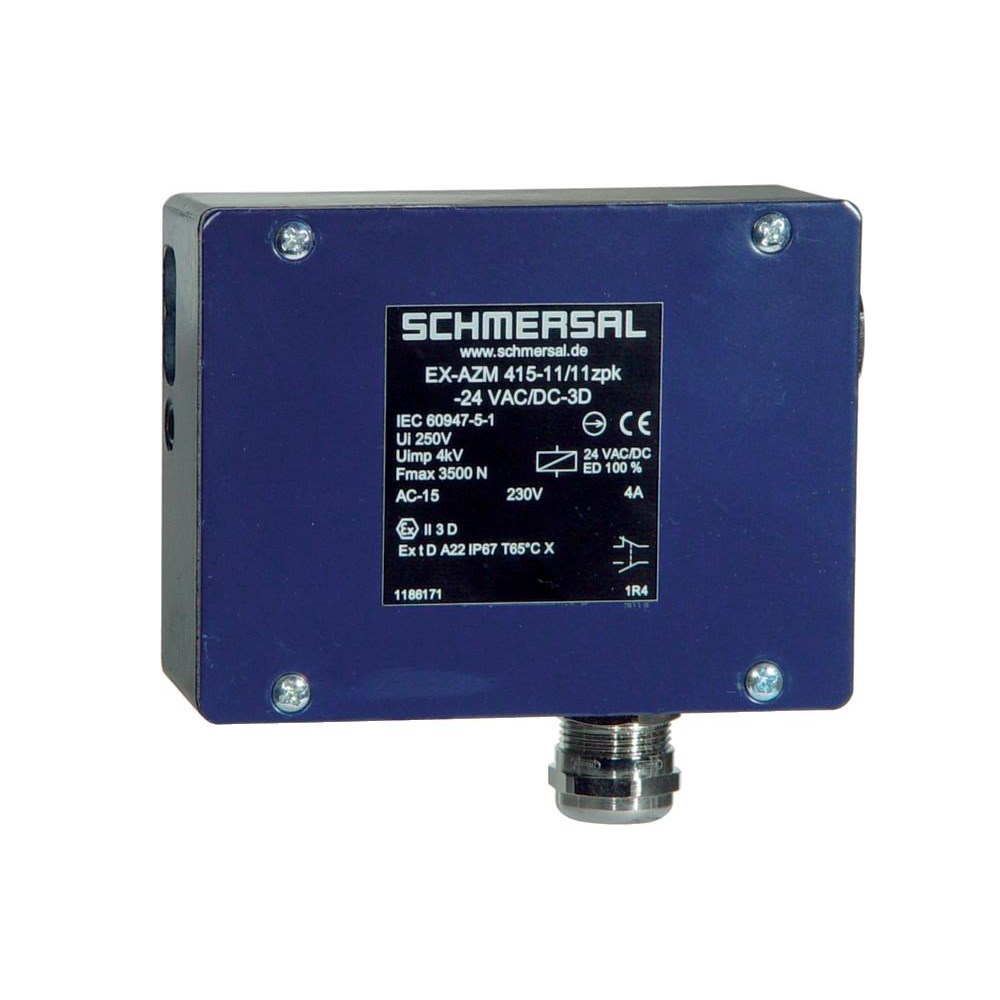

Schmersal 101186171 Solenid Interlock Switch

Product Code: 101186171

  • Durable with 20 million cycle life
  • High protection level, IP67 rated
  • Operates efficiently at up to 50°C
  • Complies with EN and IEC standards
  • Compact size: 30mm x 84mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
EX-AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
925 g
Width
130 mm

Environmental

Operating Temperature
-10 to 50 °C
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
