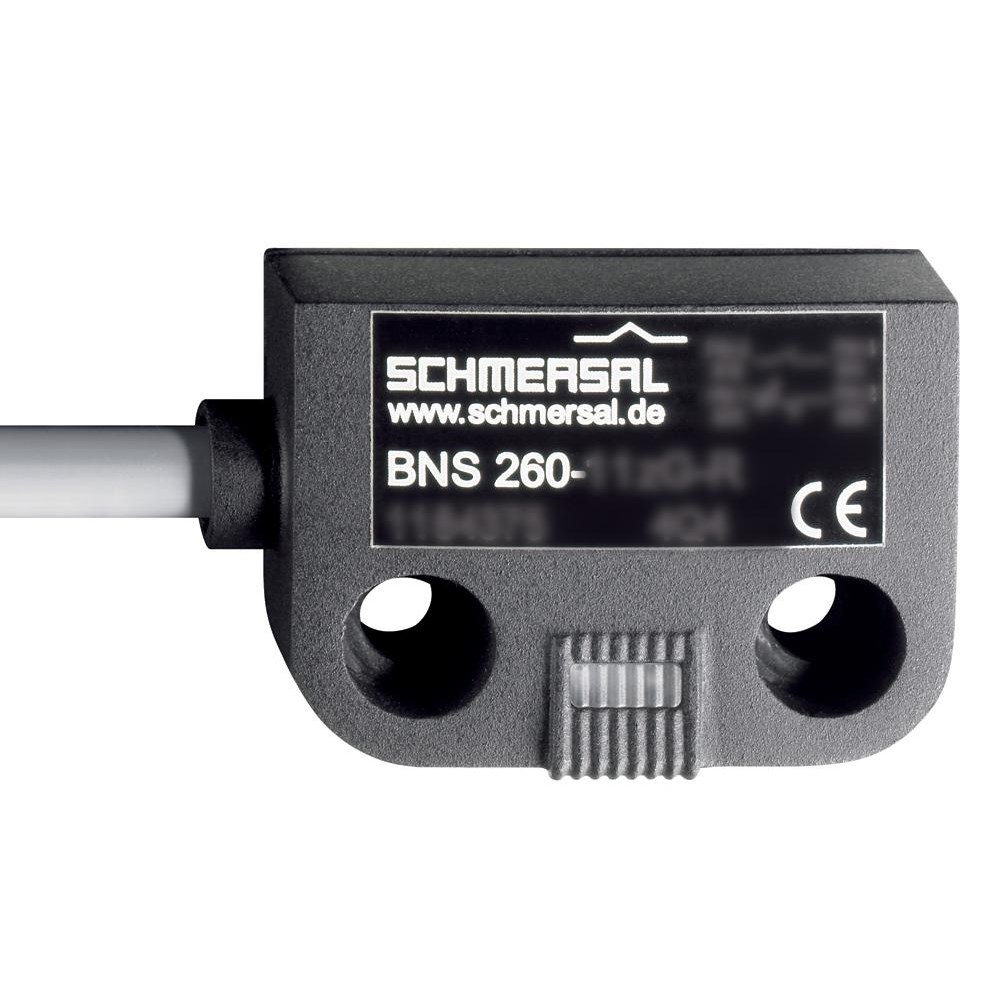

Schmersal 101186155 Magnetic Safety Sensor 2m Cable

Product Code: 101186155

  • Operates at 18-31.6 VDC, 50 mA
  • Quasi-flush mount for sleek install
  • IP67 protection against dust/water
  • Works in -25 to 60°C environments
  • Magnetic drive with magnet actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
As - Interface Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

Plug Type
Connecting cable with M12 connector, straight, 4-pole
Rated Voltage (Ur)
18 to 31.6 V DC (Protection against polarity reversal)

Mechanical

Actuator Type
BPS 260-2; BPS 260-1
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
26mm
Weight
0.1kg
Cable Length
2m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
