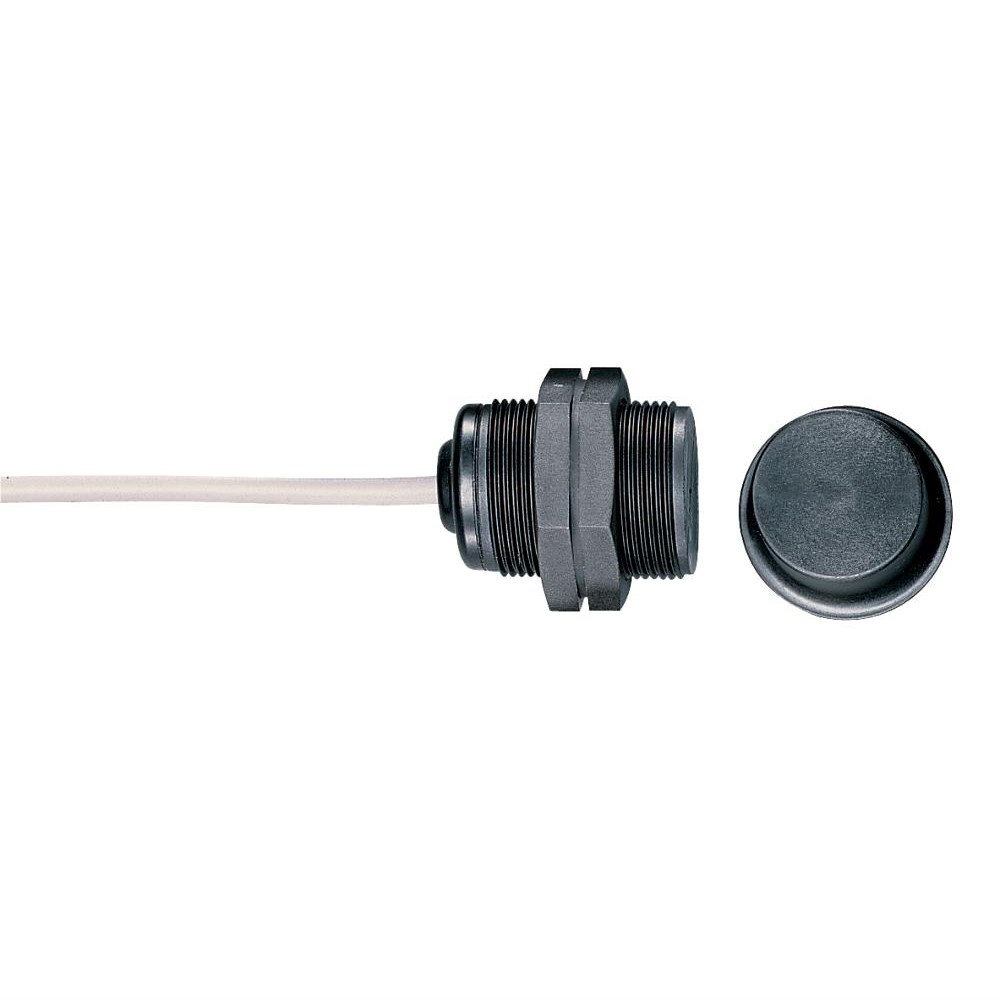

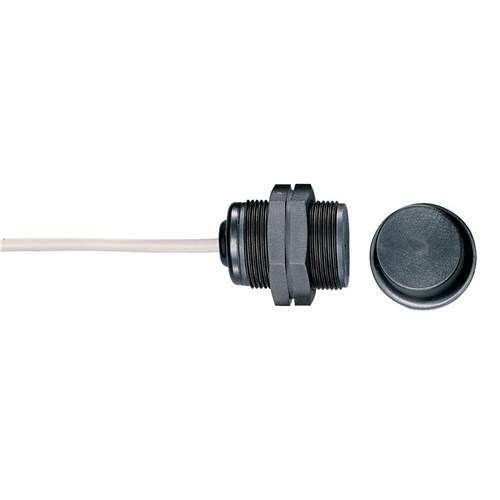

Schmersal 101185454 Magnetic Safety Sensor 1NO+1NC 3m Cable

Product Code: 101185454

  • Quasi-flush mounting for streamlined installation
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for robust environmental resistance
  • Operates effectively from -25 to 70°C
  • Complies with BG-GS-ET-14, EN IEC 60947-5-3 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 303

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
44mm
Weight
0.155kg
Cable Length
3m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
