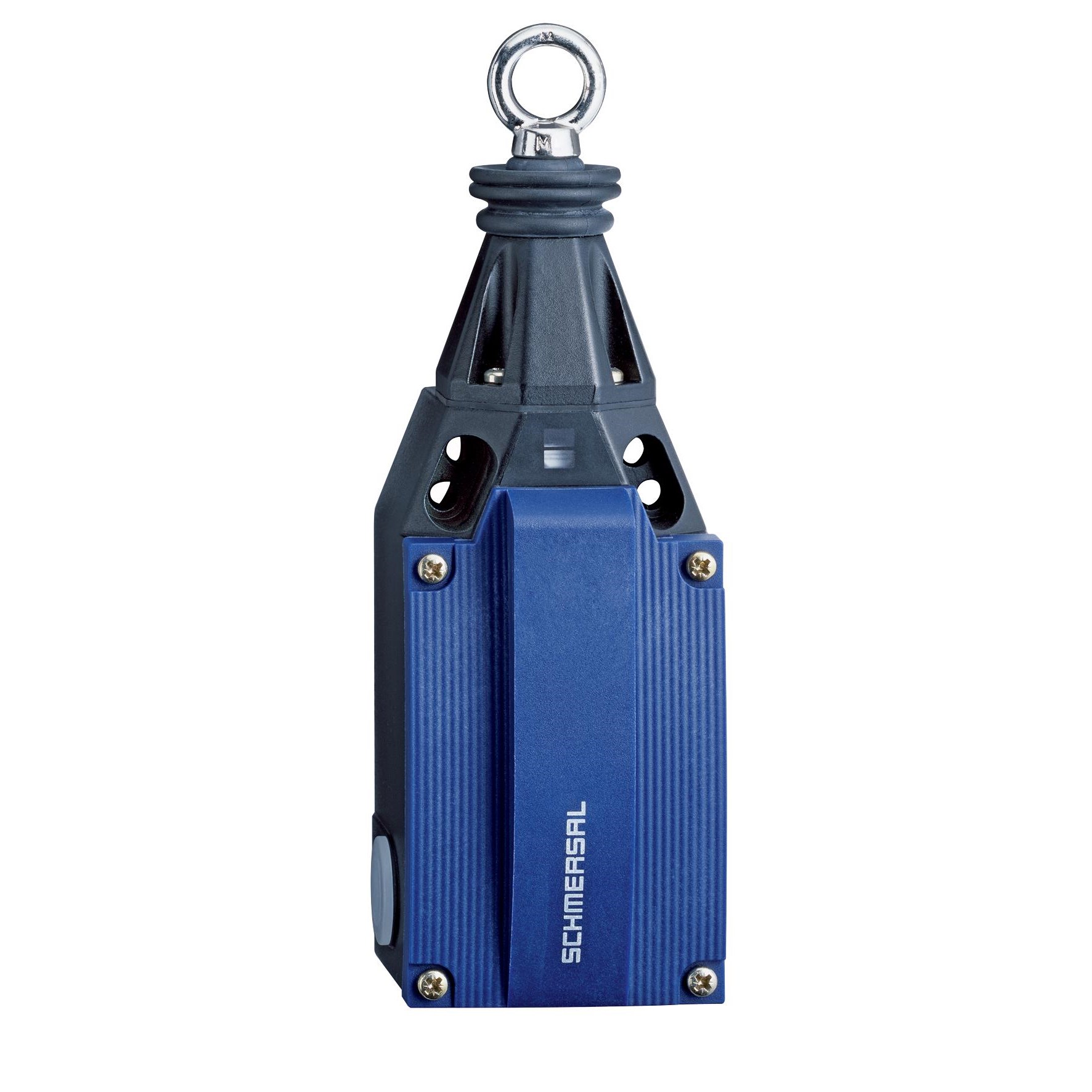

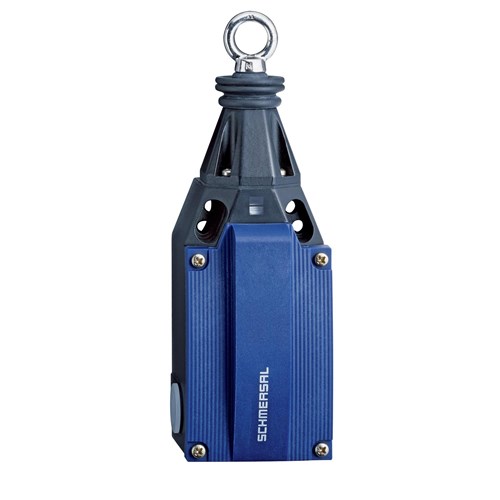

Schmersal 101184479 Pull-Wire Switch 100000 Operations

Product Code: 101184479

  • Rated current of 6 A for reliable performance
  • Durable with a mechanical life of 1 million cycles
  • Robust die-cast zinc metal housing
  • High protection rating: IP65, IP67
  • Operates in temperatures from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Switch
Brand
Schmersal
Series
TQ 900

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A/1A
Rated Voltage (Ur)
230VAC/24VDC
Terminal Type
Screw terminals

Mechanical

Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
69.7mm
Height
220.3mm
Weight
1,255g
Width
71.5mm

Environmental

IP Rating
IP67,IP65
Ambient Temperature
-25°C to 70°C
