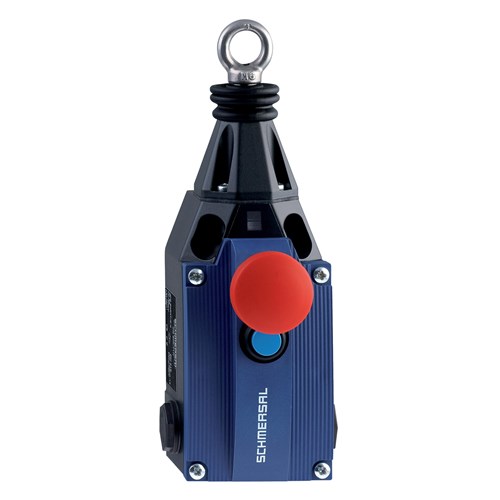

Schmersal 101184477 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184477

  • Rated current of 6 A
  • Durable metal, die-cast zinc housing
  • High protection with IP65 rating
  • Operates in -25 to 70°C temperatures
  • Complies with EN ISO and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
Schmersal
Series
ZQ 900

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
0
Rated Current (In)
4A at 230V AC, 1A at 24V DC
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
97.2mm
Height
220.3mm to 236.3mm
Weight
1.275kg
Width
71.5mm

Environmental

IP Rating
IP65
Ambient Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
