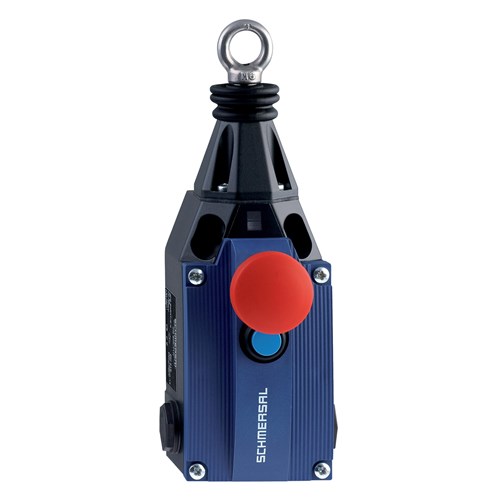

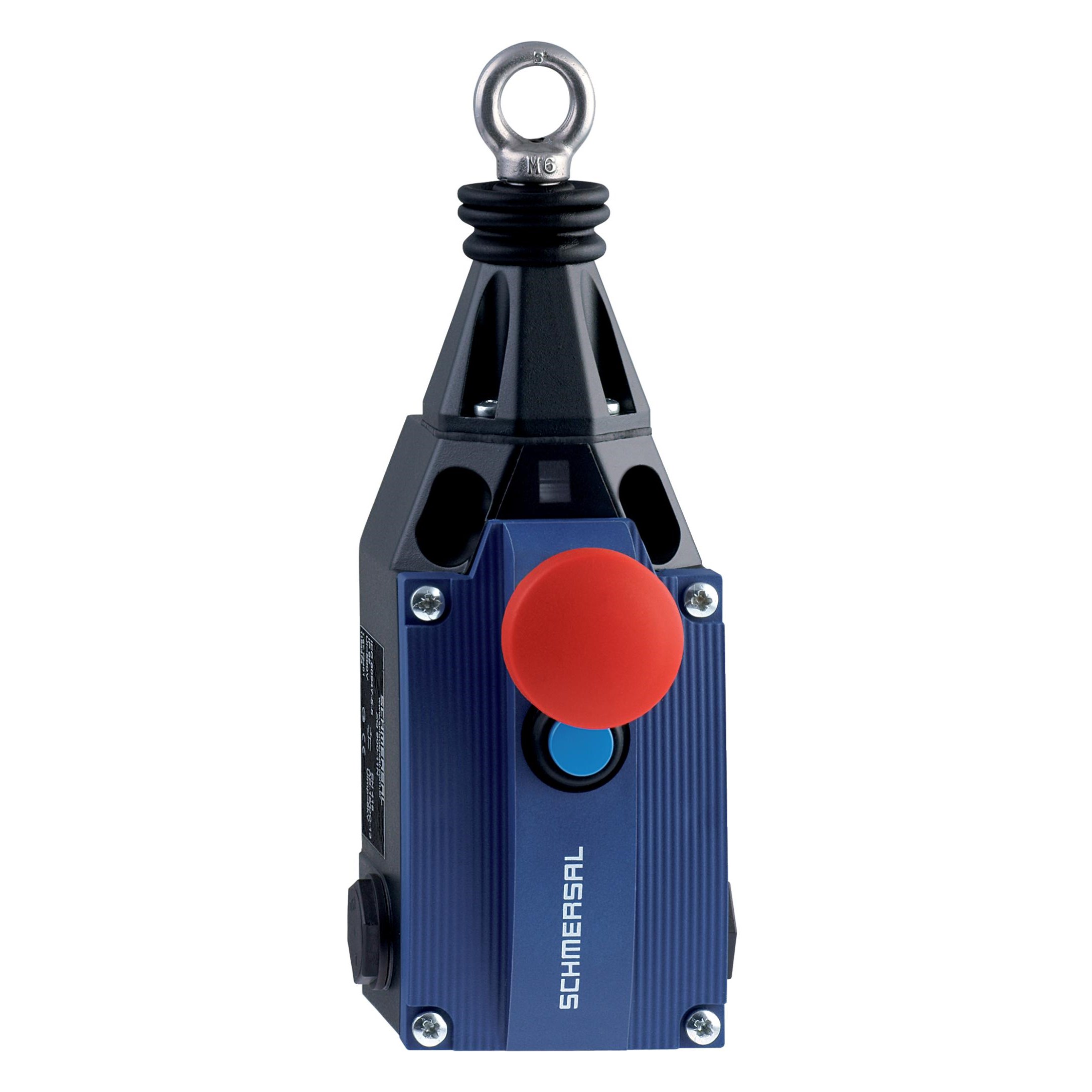

Schmersal 101184475 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184475

  • Durable metal, die-cast zinc housing
  • High protection rating of IP65
  • Operates in -25 to 70°C temperature range
  • Long mechanical life: 1 million cycles
  • Complies with multiple EN and IEC standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
Schmersal
Series
ZQ 900

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A at 230V AC, 1A at 24V DC
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
97.2mm
Height
220.3mm to 236.3mm
Weight
1.4kg
Width
71.5mm

Environmental

IP Rating
IP65
Ambient Temperature
-25°C to 70°C
