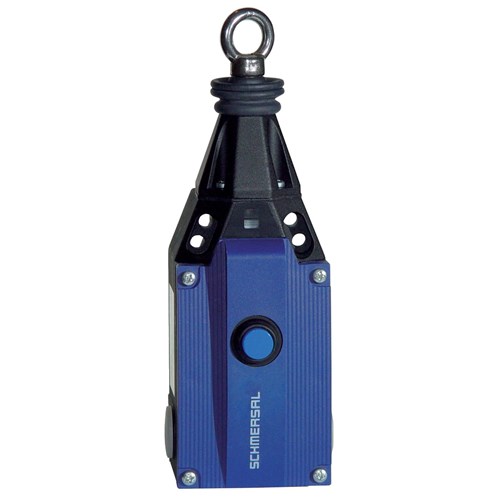

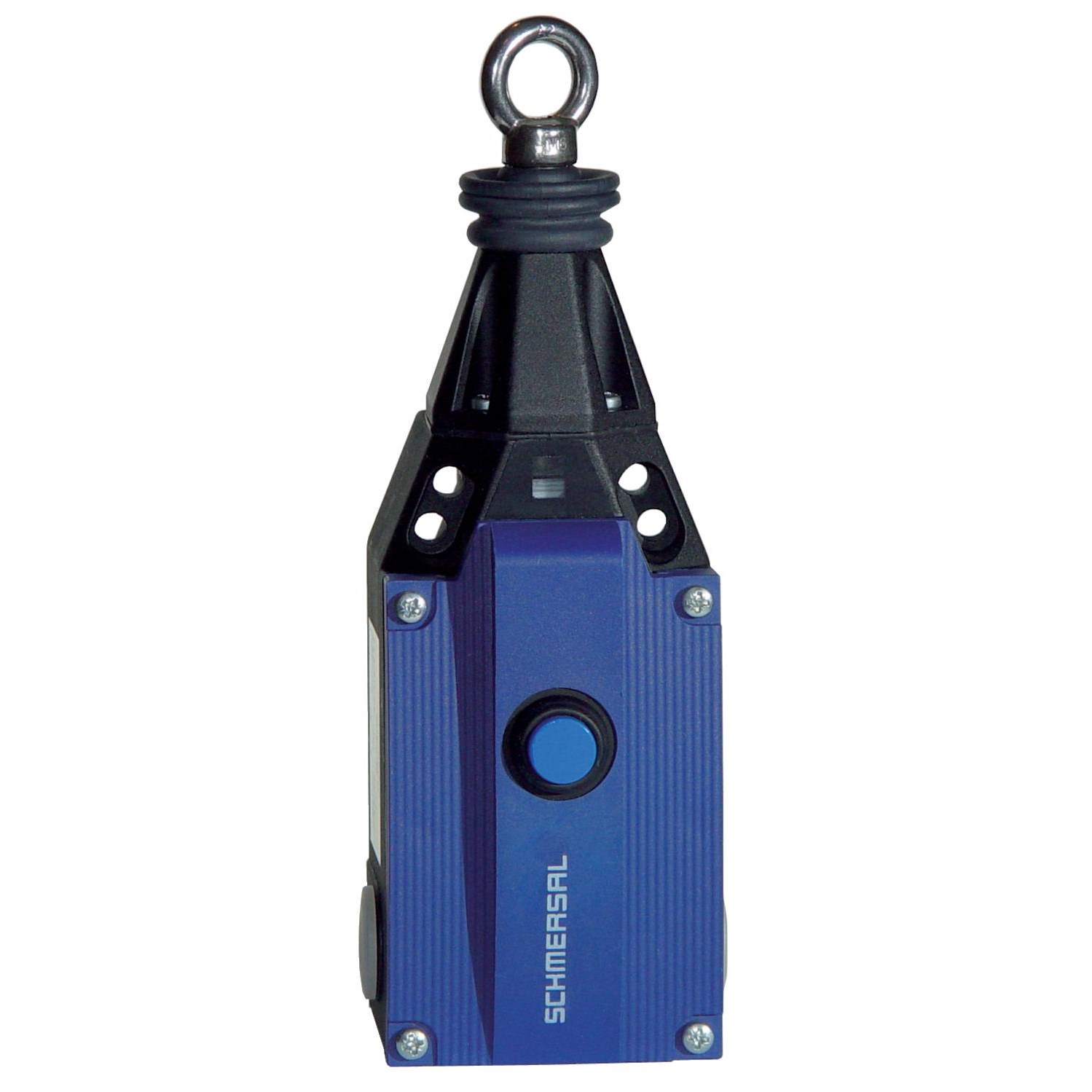

Schmersal 101184416 Pull-Wire Emergency Stop Switch NO-NC Plastic Reinforced Glass Fibre

Product Code: 101184416

  • Emergency Stop, Series ZQ for safety applications
  • Rated Current: 100 A, Insulation Voltage: 500 V
  • NO-NC contact configuration for flexibility
  • Durable with 20 million mechanical cycles
  • IP65 protection against dust and water
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
Schmersal
Series
ZQ 900

Electrical

No. of N/C Contacts
4
No. of N/O Contacts
0
Rated Current (In)
4A at 230V AC, 1A at 24V DC
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
69.7mm
Height
220.3mm to 236.3mm
Weight
1.345kg
Width
71.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-25°C to 70°C
