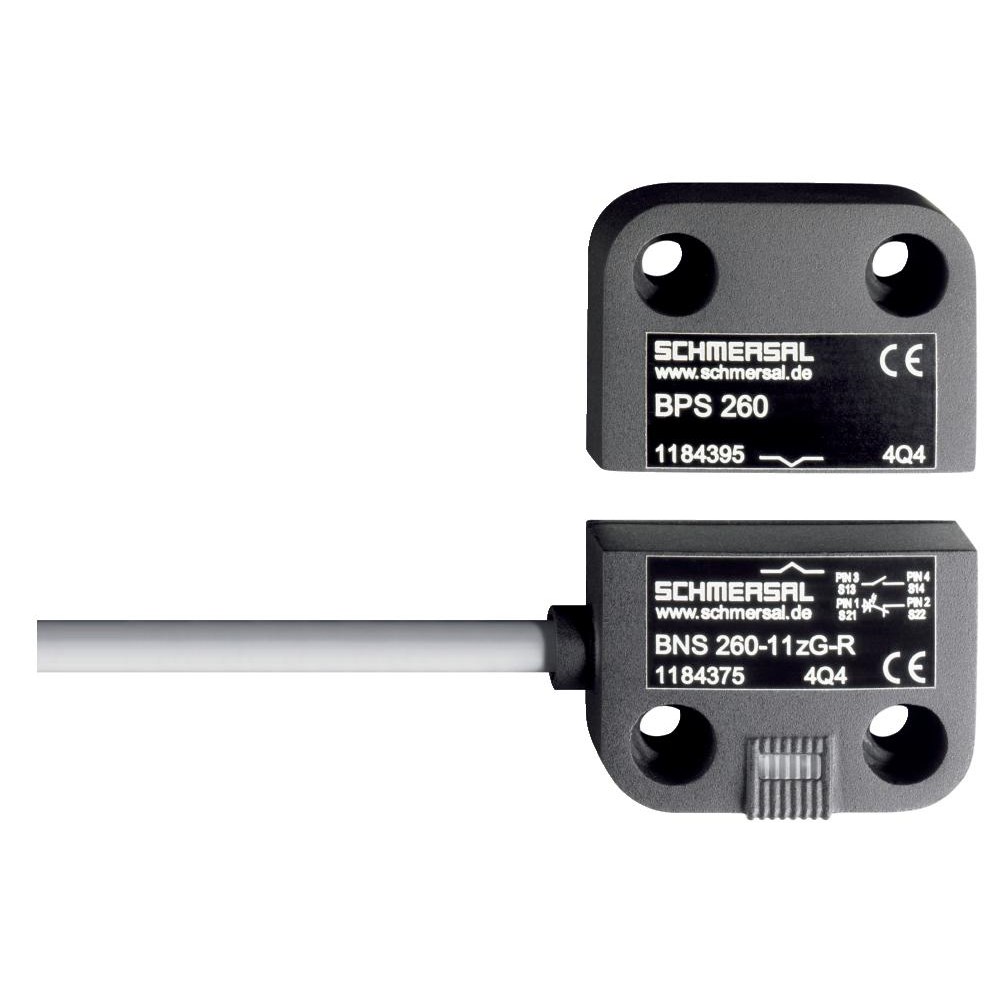

Schmersal 101184390 Magnetic Safety Sensor 1m Cable

Product Code: 101184390

  • Operates at 24 VDC, 0.01 A
  • Durable with 25M cycles lifespan
  • Compact size: 13x26x36 mm
  • IP67 protection for harsh environments
  • Quasi-flush mount design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
0
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.06kg
Width
26mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
