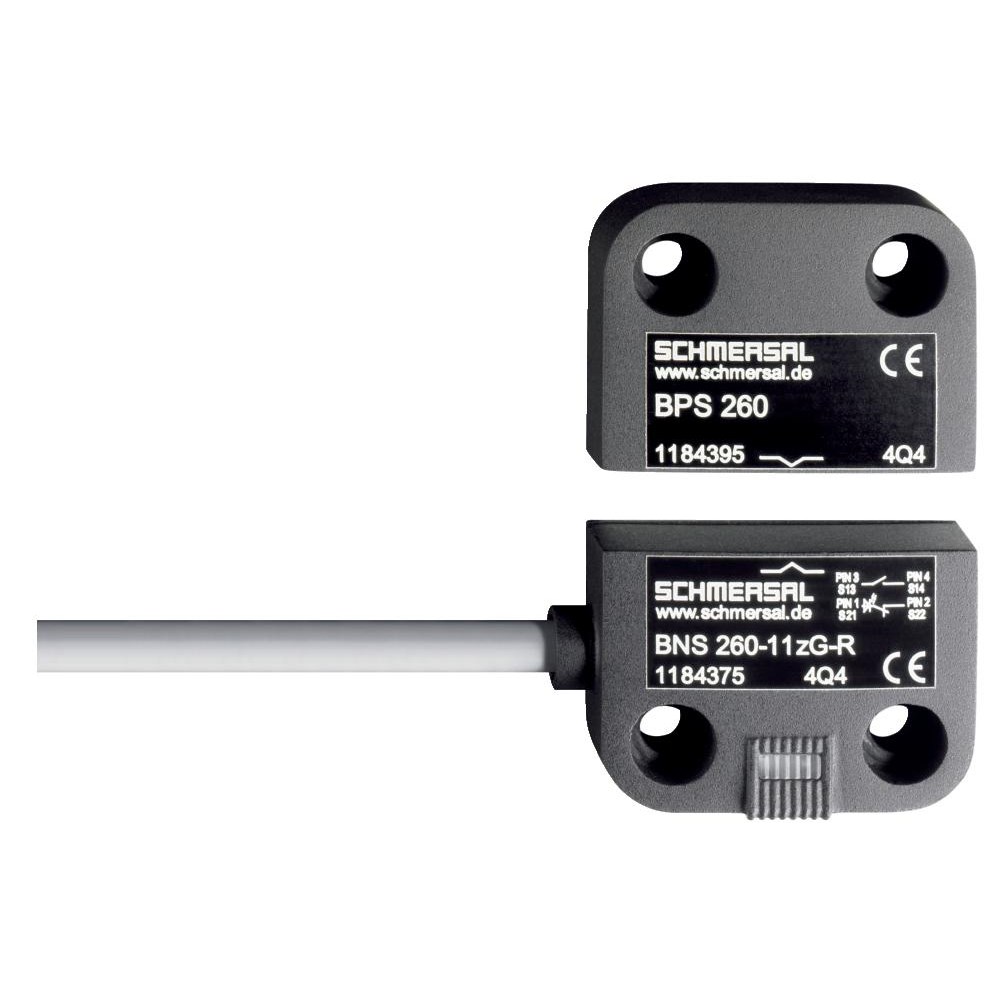

Schmersal 101184385 Magnetic Safety Sensor 1m Cable

Product Code: 101184385

  • Rated voltage of 75 VDC, current at 0.4 A
  • Durable with 25 million mechanical cycles
  • Compact sensor size: 13x26x36 mm
  • Operates in -25 to 70°C temperature range
  • IP67 protection for harsh environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Rated Current (In)
0.4A
Rated Voltage (Ur)
75V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.055kg
Width
26mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
