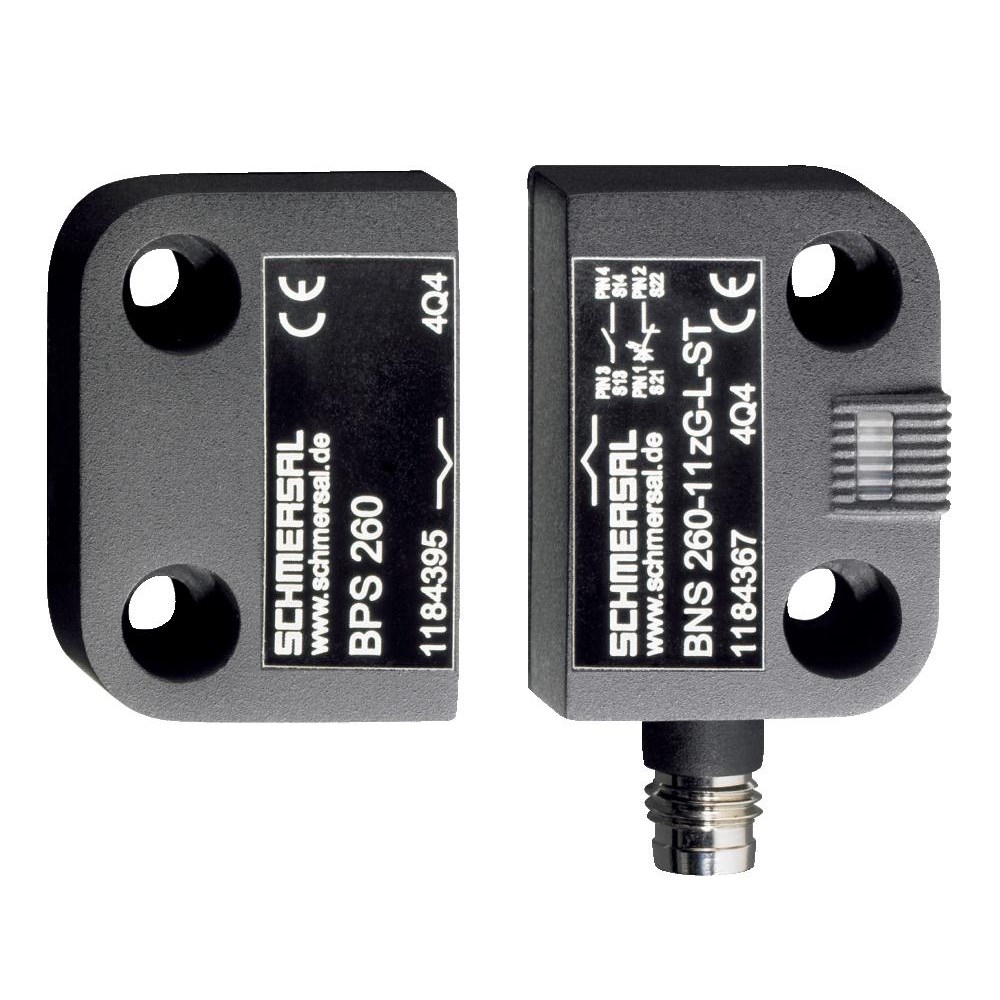

Schmersal 101184381 Magnetic Safety Sensor

Product Code: 101184381

  • Operates at 24 VDC with 0.01 A current
  • Durable with 25 million mechanical cycles
  • Compact size: 13 x 26 x 36 mm
  • IP67 rated for robust protection
  • Quasi-flush mounting design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connector M8
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.032kg
Width
26mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
