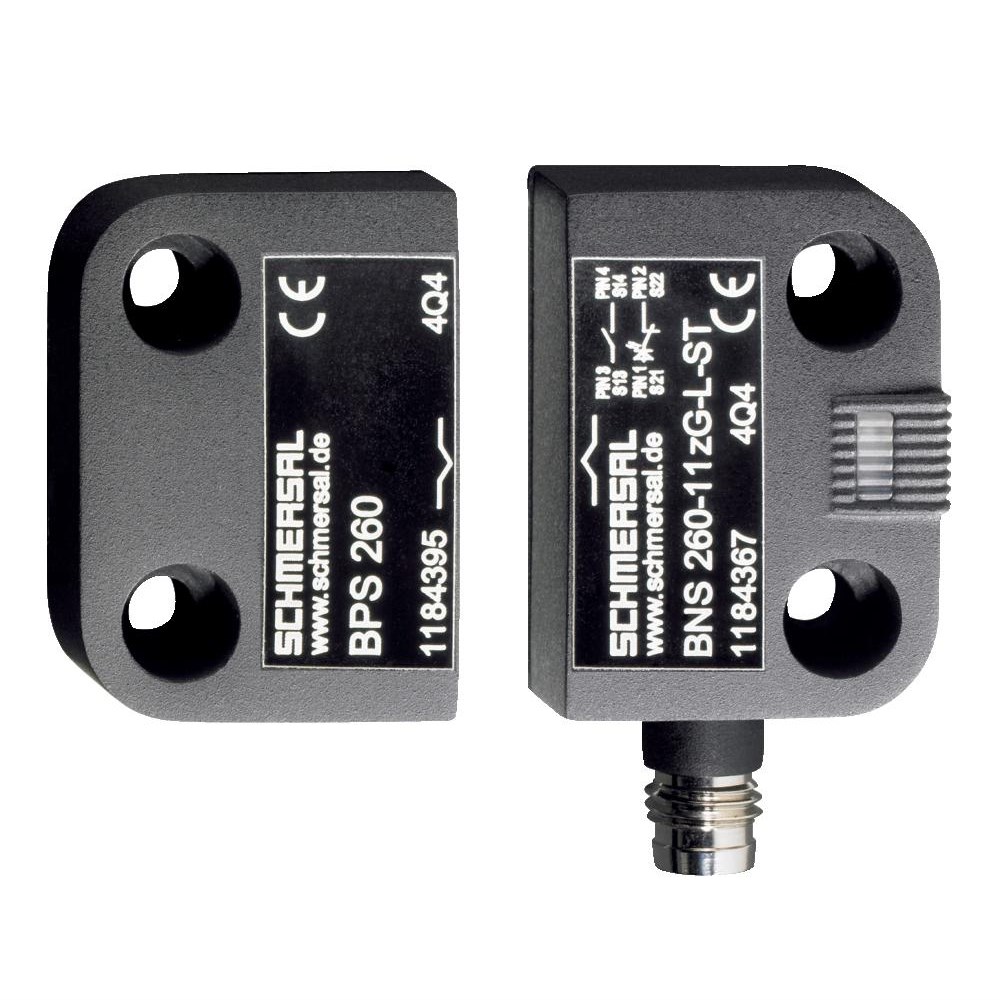

Schmersal 101184377 Magnetic Safety Sensor NO

Product Code: 101184377

  • Durable plastic, glass fibre reinforced housing
  • IP67 rated for robust protection
  • Long mechanical life of 20 million cycles
  • Operates at a max temp of 80°C
  • R200 roller plunger actuator type
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connector M8
Rated Current (In)
0.4A
Rated Voltage (Ur)
30V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.032kg
Width
26mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
