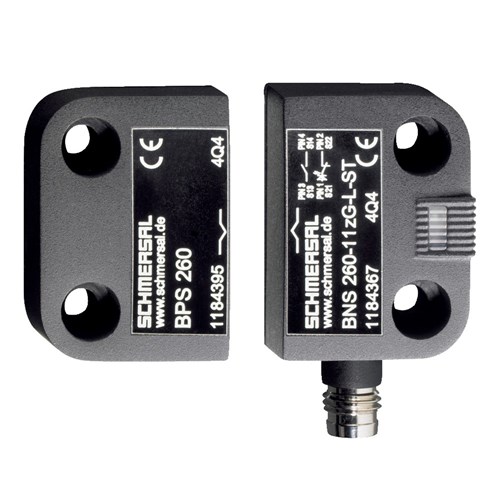

Schmersal 101184365 Magnetic Safety Sensor

Product Code: 101184365

  • Compact sensor: 13 mm x 26 mm x 36 mm
  • Durable with IP67 protection rating
  • Operates in -25 to 70°C temperature range
  • Long mechanical life of 25 million cycles
  • Reinforced thermoplastic housing for durability
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connector M8
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.033kg
Width
26mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
