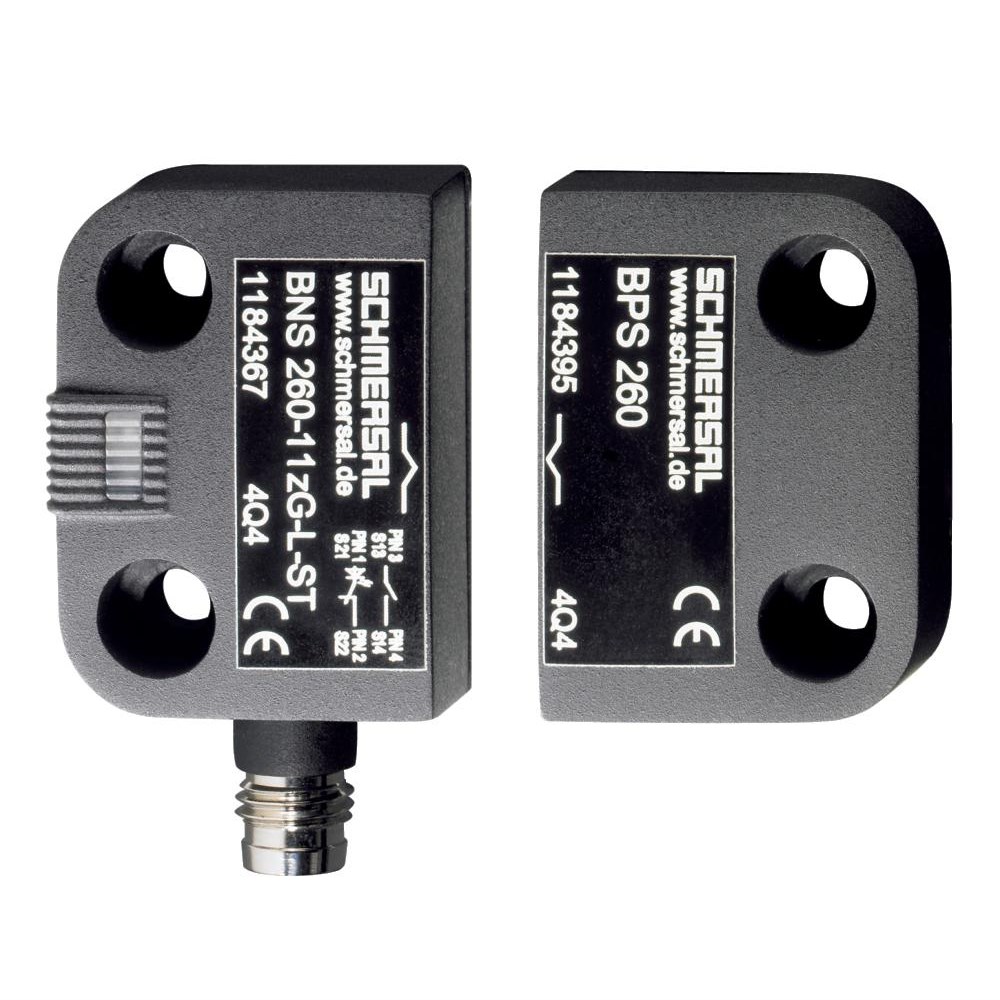

Schmersal 101184363 Magnetic Safety Sensor 1NO+1NC

Product Code: 101184363

  • Compact design: 13x26x36 mm size
  • Durable glass fibre thermoplastic housing
  • IP67-rated for robust protection
  • Operates at up to 70°C
  • Meets BG-GS-ET-14, cULus, EN IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Plug Type
Connector M8
Rated Current (In)
0.4A
Rated Voltage (Ur)
30V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.032kg
Width
26mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
