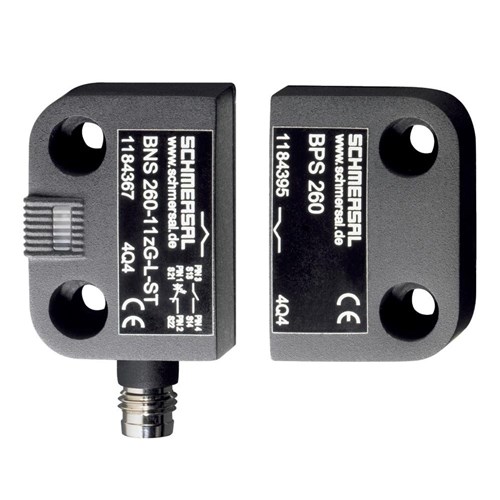

Schmersal 101184361 Magnetic Safety Sensor

Product Code: 101184361

  • Operates at 75 VDC and 0.4 A
  • Quasi-flush mounting design
  • Durable glass fibre reinforced thermoplastic housing
  • IP67 protection for harsh environments
  • Withstands up to 25 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 260

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connector M8
Rated Current (In)
0.4A
Rated Voltage (Ur)
30V DC

Mechanical

Actuator Type
BPS 260
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
36mm
Weight
0.025kg
Width
26mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
