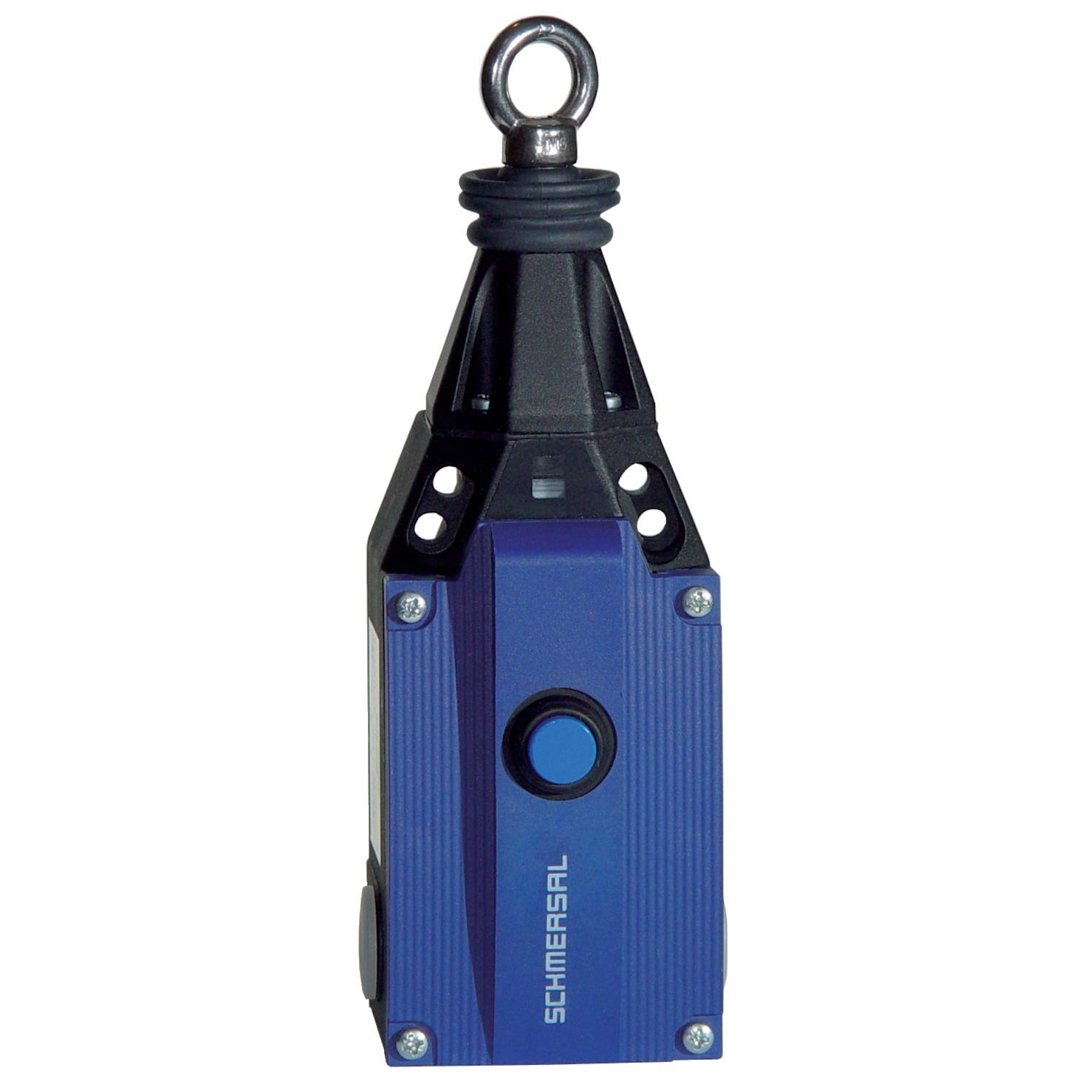

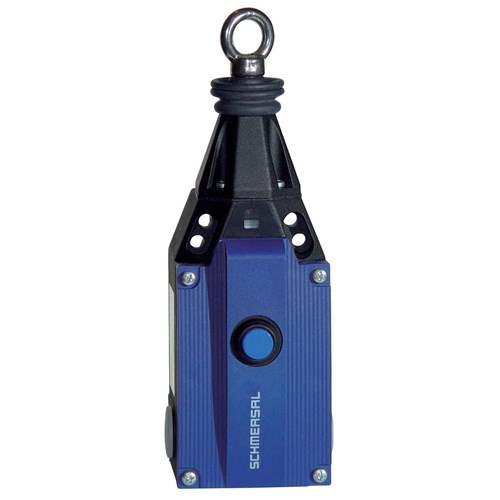

Schmersal 101184332 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184332

  • Rated current of 6 A for efficient performance
  • Durable with 1,000,000 mechanical cycles
  • Robust metal housing made from die-cast zinc
  • High protection with IP65 and IP67 ratings
  • Operates in temperatures from -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
Schmersal
Series
ZQ 900

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
4A at 230V AC, 1A at 24V DC
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
69.7mm
Height
220.3mm to 236.3mm
Weight
1.34kg
Width
71.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-25°C to 70°C
