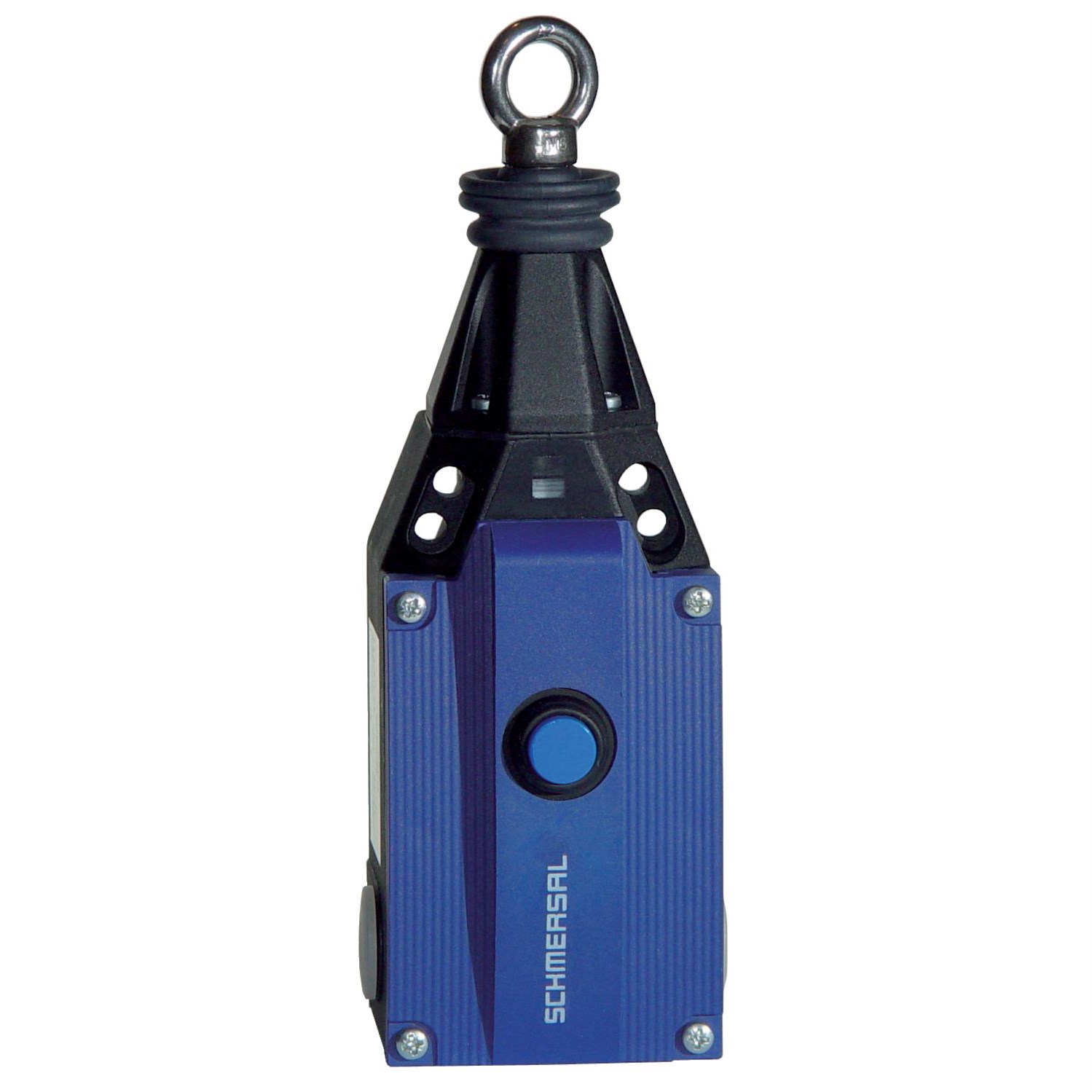

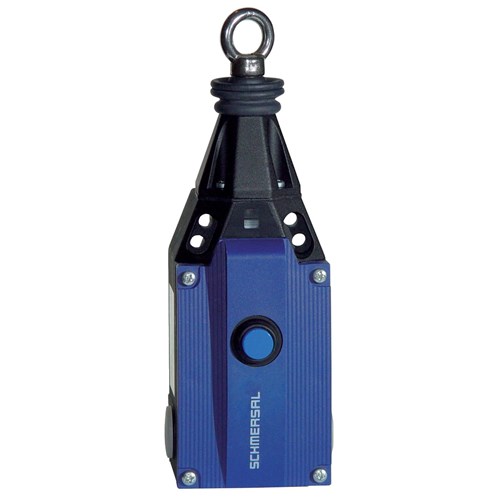

Schmersal 101184329 Pull-Wire Emergency Stop Switch 100000 Operations

Product Code: 101184329

  • Rated current of 6 A for efficient performance
  • Durable metal, die-cast zinc housing
  • High protection with IP65 and IP67 ratings
  • Wide operating temp: -25 to 70°C
  • Long mechanical life: 1 million cycles
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Pull - Wire Emergency Stop Switch
Brand
Schmersal
Series
ZQ 900

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
4A at 230V AC, 1A at 24V DC
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
3 x M20 x 1.5
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
69.7mm
Height
220.3mm to 236.3mm
Weight
1.44kg
Width
71.5mm

Environmental

IP Rating
IP65, IP67
Ambient Temperature
-25°C to 70°C
