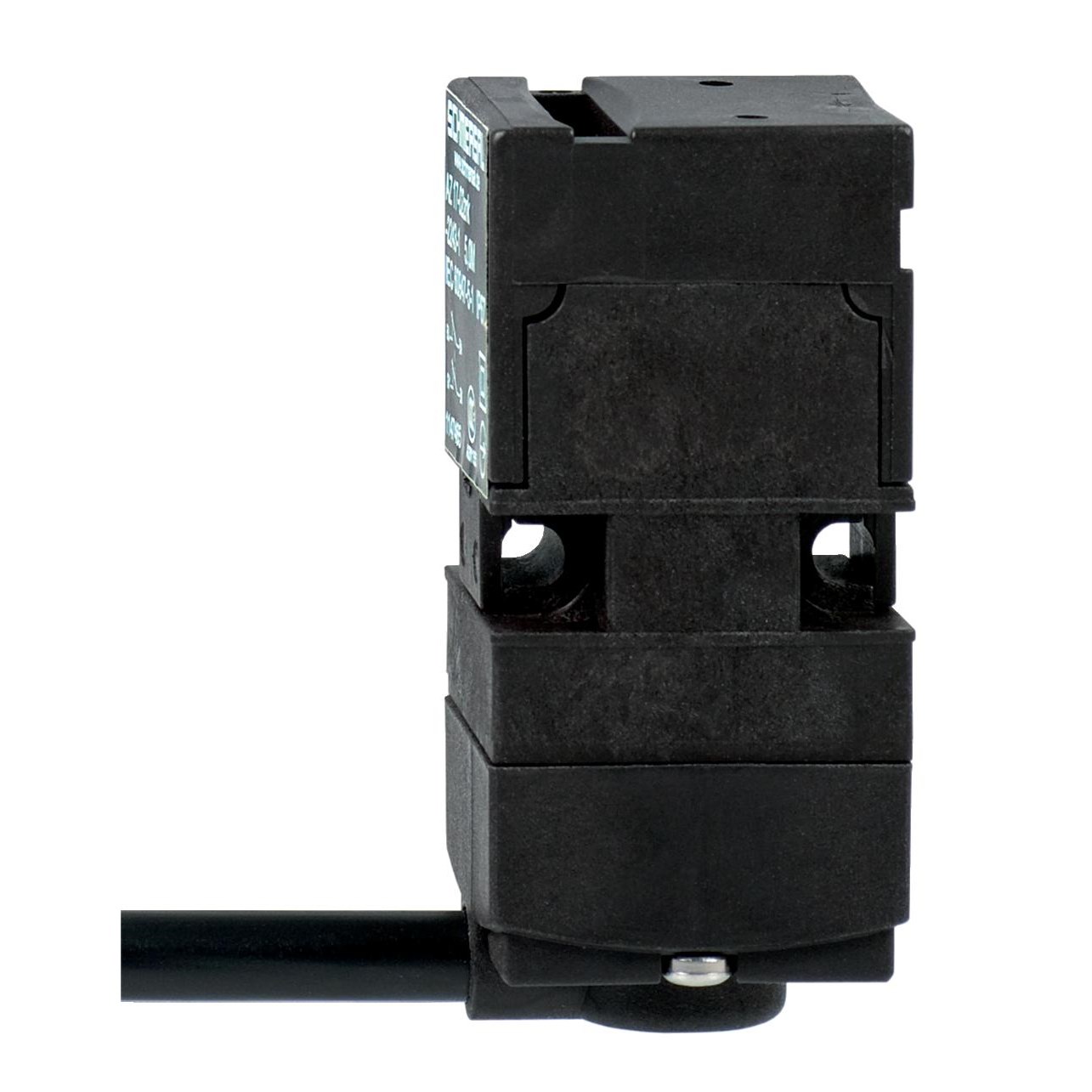

Schmersal 101184150 Safety Switch with Separate Actuator NC

Product Code: 101184150

  • Rated at 1000 A for high power applications
  • IP67 protection for harsh environments
  • Operates from -30 to 80°C
  • Durable with 1,000,000 cycles mechanical life
  • Compliant with EN IEC 60947-5-1 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 17

Electrical

No. of N/C Contacts
2
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Pre-wired cable

Mechanical

Cable Entry
Pre-wired cable
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
65 mm
Weight
65 g
Width
30 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
