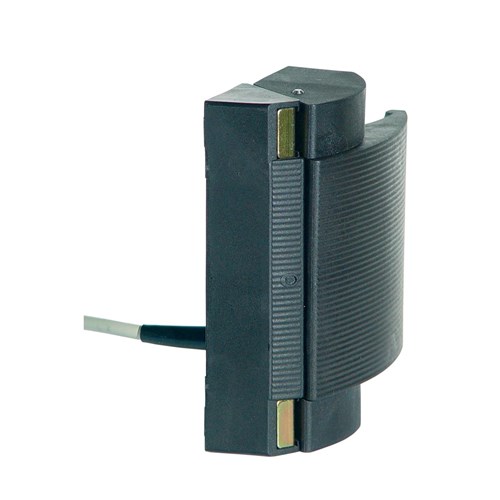

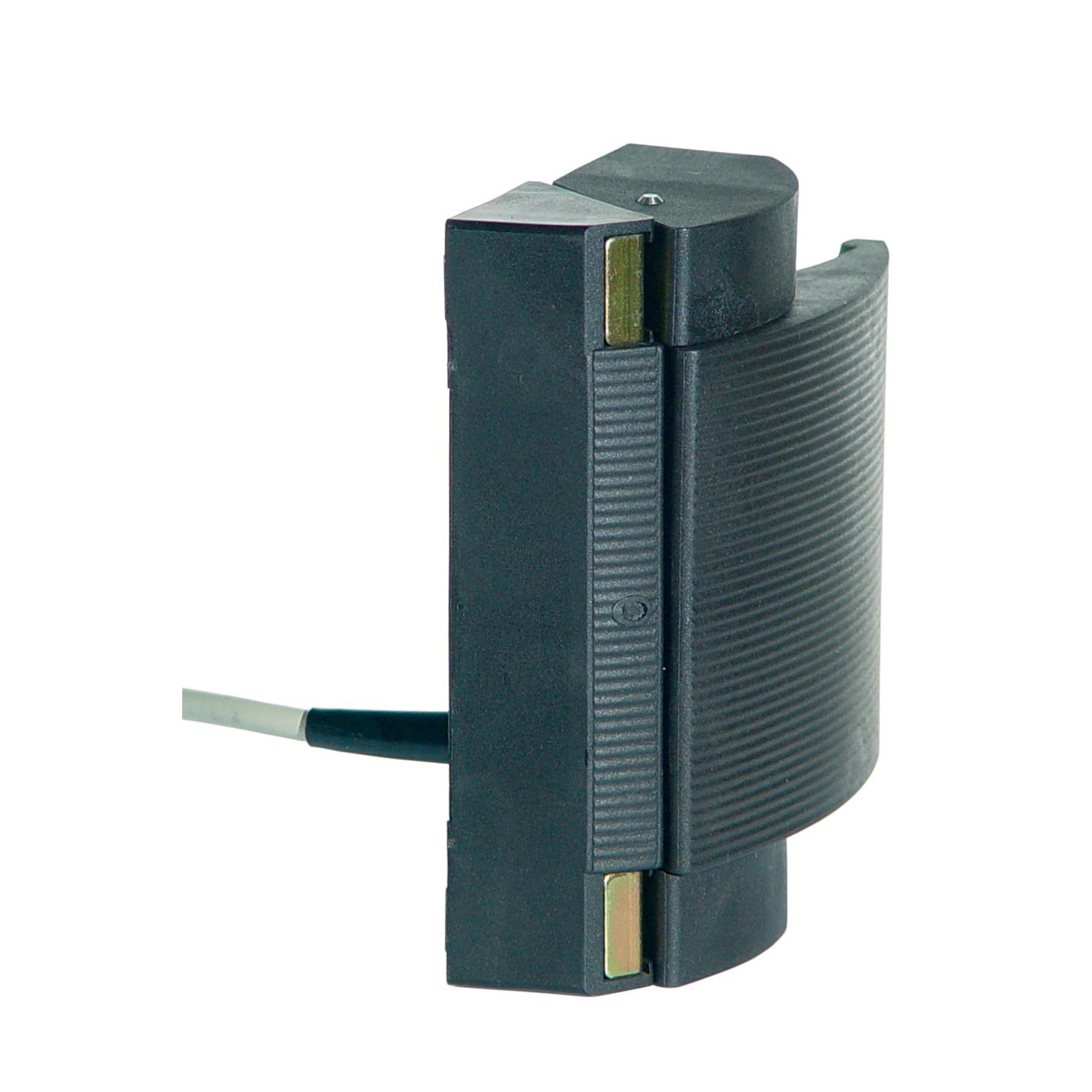

Schmersal 101184134 Magnetic Safety Sensor 1m Cable

Product Code: 101184134

  • Compact design: 43.3mm L x 119.5mm W x 140mm H
  • Durable: 25 million mechanical cycles
  • High protection: IP67 rating
  • Operates in -25 to 70°C temperature range
  • Reliable magnet actuating element
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS-B20

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
100V AC; 24V DC

Mechanical

Actuator Type
BNS-B20-B01
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
43.3mm
Height
140mm
Weight
0.117kg
Width
119.5mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
