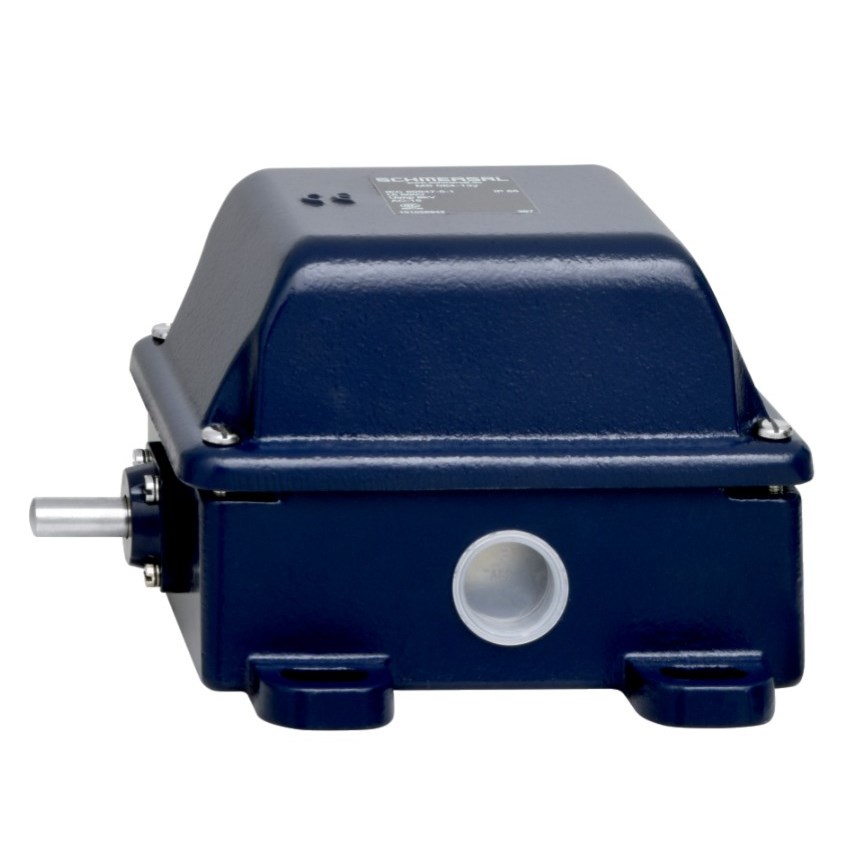

Schmersal 101183720 Position Switch

Product Code: 101183720

  • Compact design for space-saving installation
  • High durability for long-lasting performance
  • Suitable for various industrial environments
  • Easy to install and maintain
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
64

Electrical

Rated Impulse Withstand Voltage (Uimp)
6kV
Rated Insulation Voltage (Ui)
500V
Switching Principle
Slow action
Utilization Category
AC-15 400 VAC / 25 A
Contact Configuration
2 NC + 1 NO
Mechanical Life
1,000,000 operations
Thermal Test Current
25A

Mechanical

Cable Cross Section
1.5mm² to 4mm²
Cable Entry
Screw terminals; M25 cable entry
Contact Material
Silver
Housing Material
Grey cast iron, galvanised; painted
Actuator / Operating Element
Roller lever; plastic roller

Dimensions & Physical Data

Depth
149
Height
156
Weight
3.725kg
Width
212

Environmental

IP Rating
IP65
Ambient Temperature
-30°C to 90°C

Safety, Standards & Compliance

Standards and Approvals
CCC; cULus; EN IEC 60947-5-1
