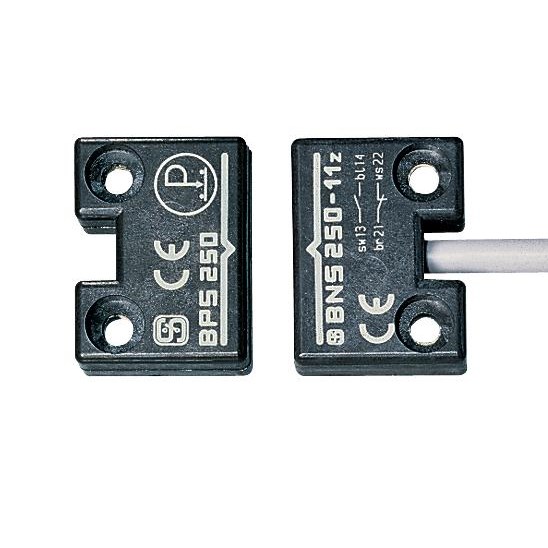

Schmersal 101183516 Magnetic Safety Sensor 12m Cable

Product Code: 101183516

  • Operates at 24 VDC, 0.1 A, and 1 W power
  • Durable with 25 million cycle lifespan
  • IP67 rated for superior protection
  • Glass fibre reinforced thermoplastic housing
  • Compact size: 13x33x25 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 250

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 250
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.41kg
Width
33mm
Cable Length
12m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
