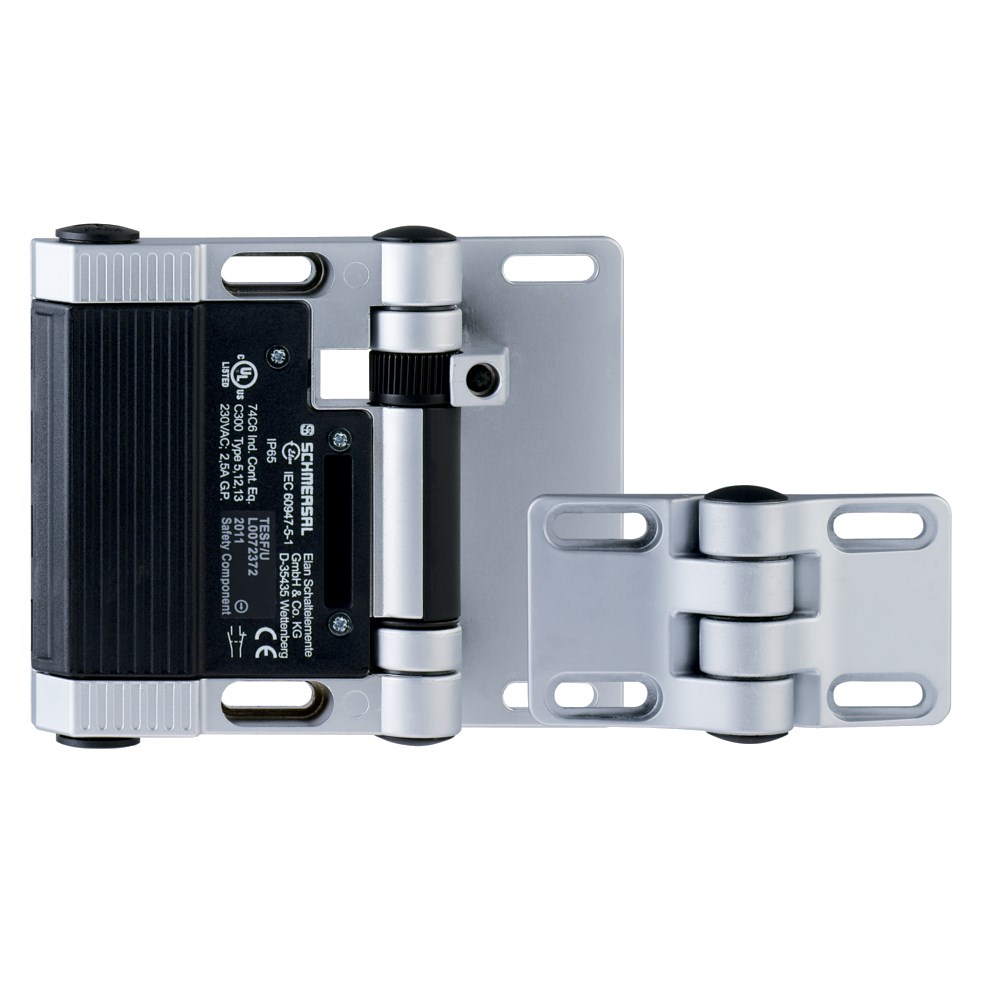

Schmersal 101182699 Safety Hinge Switch 230VAC 1NO+1NC

Product Code: 101182699

  • Rated for 230 VAC and 4 A
  • Durable with 1,000,000 cycles
  • IP65 protection against dust/water
  • Operates in -25 to 65°C range
  • Robust die-cast zinc housing
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Hinge Switch
Brand
Schmersal
Series
TESF

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
2A, 1A
Rated Voltage (Ur)
230V AC, 24V DC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M16 x 1.5
Housing Colour
Black
Housing Material
Metal, zinc die-cast

Dimensions & Physical Data

Depth
21.5mm
Height
115mm
Weight
0.84kg
Width
141mm

Environmental

Operating Temperature
-25°C to 65°C
IP Rating
IP65

Documents

IPD Product Catalogue V17
