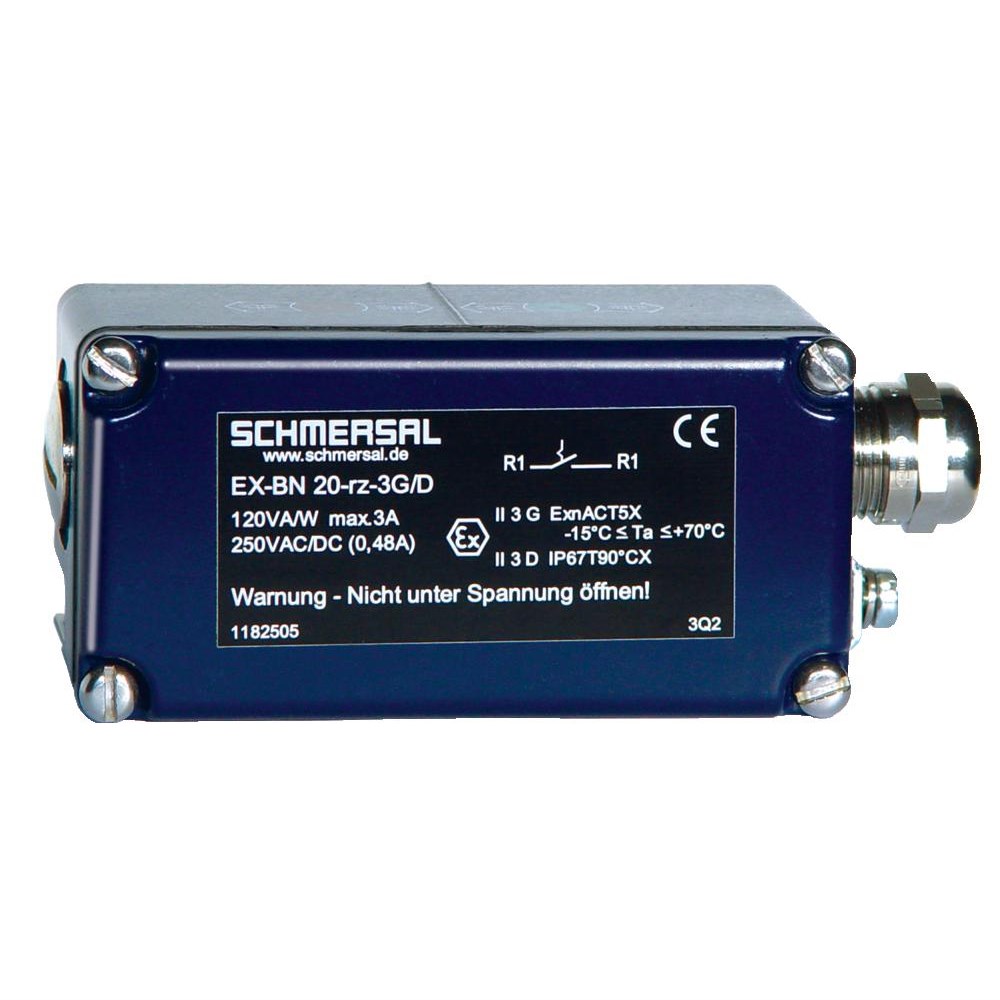

Schmersal 101182505 Magnetic Reed Switch 3A BP 15/2 BP 20 BP 10 Screw Terminal

Product Code: 101182505

  • Rated for 250 VAC and 3 A
  • Durable die-cast alloy housing
  • IP67 protection against dust and water
  • Operates in -25 to 70°C range
  • Magnetic drive with reed contacts
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Reed Switch
Brand
Schmersal
Series
EX-BN 20

Electrical

Configuration Type
bistable contact
Switching Current
3:00 AM
Switching Voltage
250 V AC, 250 V DC
Electrical Connection
Screw terminals M20 x 1.5

Mechanical

Material
Light-alloy diecast, paint finish

Dimensions & Physical Data

Depth
47 mm
Height
52 mm
Weight
305 g
Width
104 mm

Environmental

Operating Temperature
-15 to 70 degC
IP Rating
IP67
