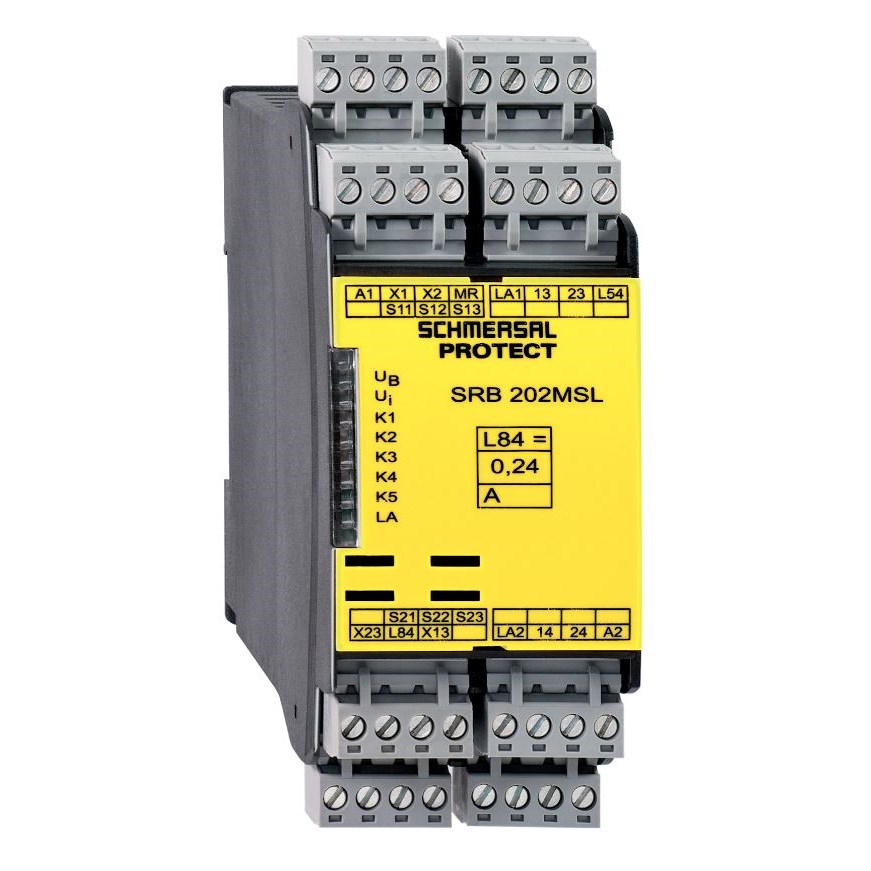

Schmersal 101181998 Safety Relay Module 24VDC

Product Code: 101181998

  • Operates at 24 VDC with 5.6 W power
  • Easy DIN rail mounting
  • IP40 protection rating
  • Suitable for up to 45°C environments
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Control Unit
Brand
Schmersal
Series
SRB202MSL

Electrical

Switching Current
2:00 AM
Switching Voltage
24 V DC
Supply Voltage
24 V DC

Mechanical

Housing Material
Glass-fibre reinforced thermoplastic, ventilated

Dimensions & Physical Data

Depth
121 mm
Height
100 mm
Weight
400 g
Width
45 mm

Environmental

Operating Temperature
-25 to 45 °C
IP Rating
IP40, IP54, IP20

Safety, Standards & Compliance

Auxiliary Relay Outputs
2
Auxiliary Semiconductor Outputs
2
Safe Relay Outputs, Stop 0
2
Safe Relay Outputs, Stop 1
0
Safety Category
4
Safety Integrity Level
SIL 3
Monitoring Circuit
Yes
Performance Level
PL e
