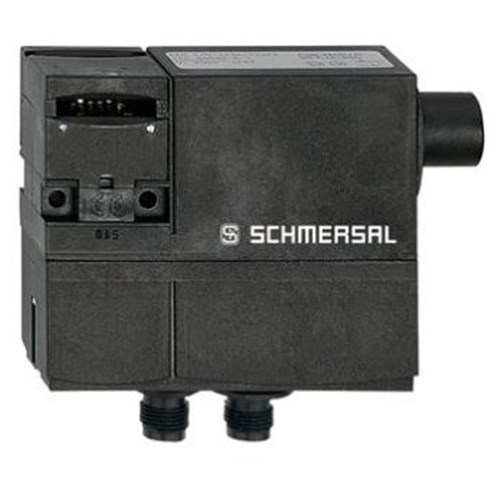

Schmersal 101181259 Solenid Interlock Switch 24VAC/VDC NC

Product Code: 101181259

  • Durable plastic, glass fibre reinforced housing
  • High protection with IP67 rating
  • Long lifespan: 1 million mechanical cycles
  • Versatile 24 VAC/VDC operation
  • Slow action contact configuration
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
2
Rated Current (In)
0.166667
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Guard Locking Force
1,000 N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
75.5 mm
Weight
295 g
Width
108 mm

Environmental

Operating Temperature
-25 to 70 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
