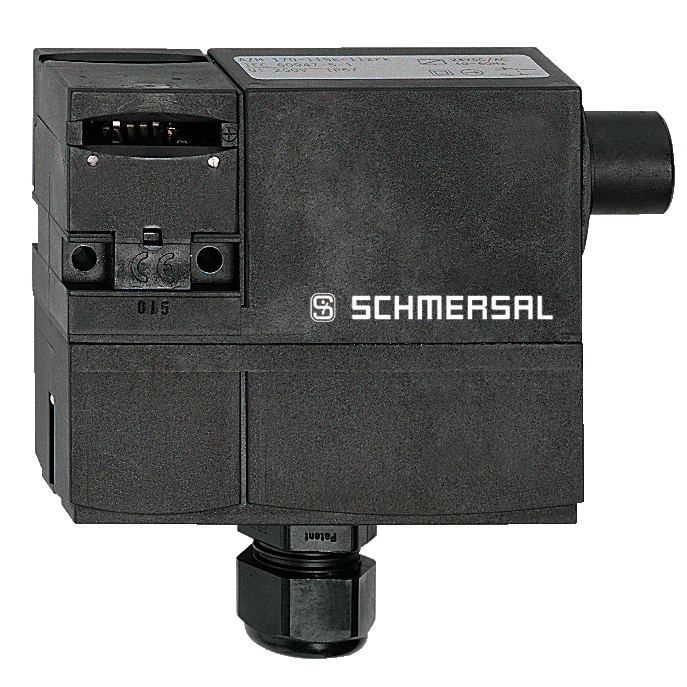

Schmersal 101179686 Solenid Interlock Switch 24VAC/VDC NC

Product Code: 101179686

  • 24 VAC/VDC rated voltage for versatile use
  • IP67 protection ensures durability in harsh conditions
  • Long mechanical life of 1 million cycles
  • Screw mounting for easy installation
  • Complies with IFA, cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 170

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Voltage (Ur)
24V AC/DC

Mechanical

Cable Entry
1 x M20 x 1.5
Guard Locking Force
1,000N
Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30mm
Height
100.5mm
Weight
0.36kg
Width
108mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
