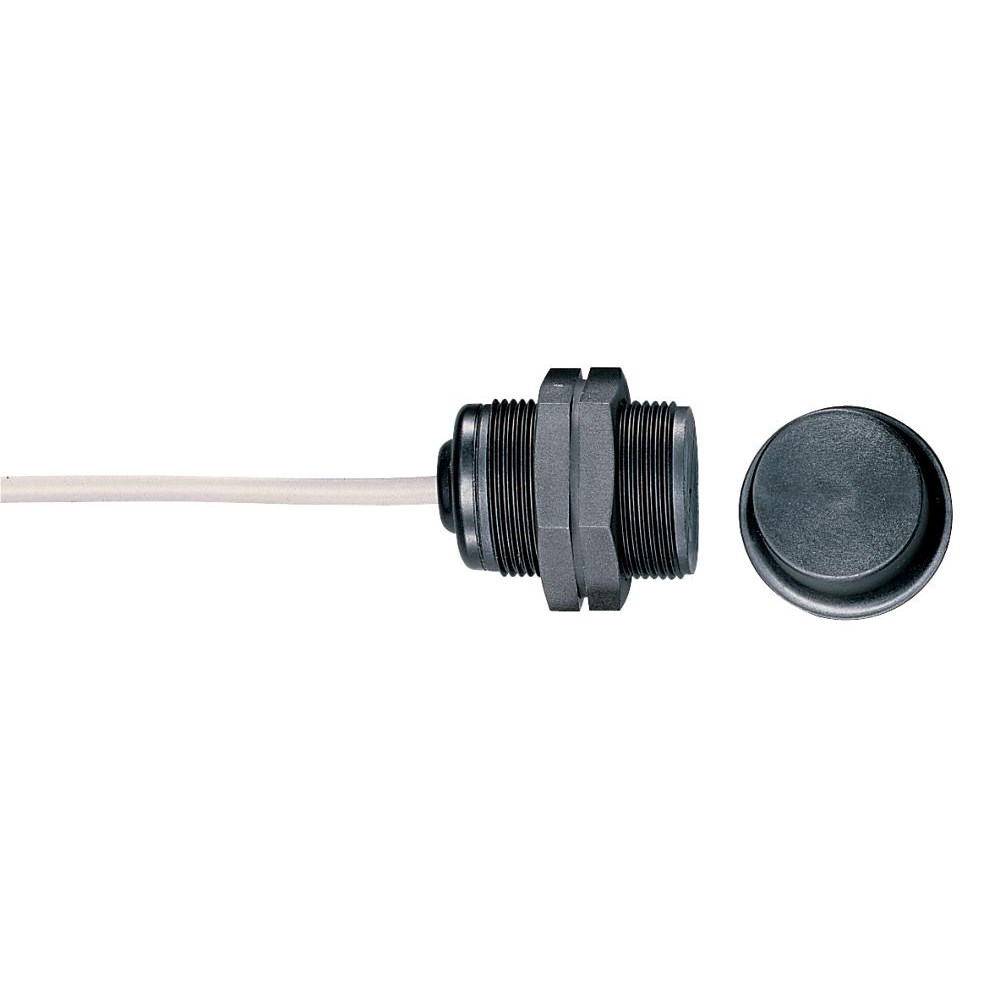

Schmersal 101179284 Magnetic Safety Sensor 1NO+1NC 5m Cable

Product Code: 101179284

  • Rated for 0.4 A and 10 W
  • IP67 protection for harsh environments
  • Operates in -25 to 70°C range
  • Glass fibre reinforced thermoplastic housing
  • Quasi-flush mounting with magnet actuator
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 303

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Current (In)
0.01A
Rated Voltage (Ur)
24V DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
44mm
Weight
0.23kg
Cable Length
5m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
