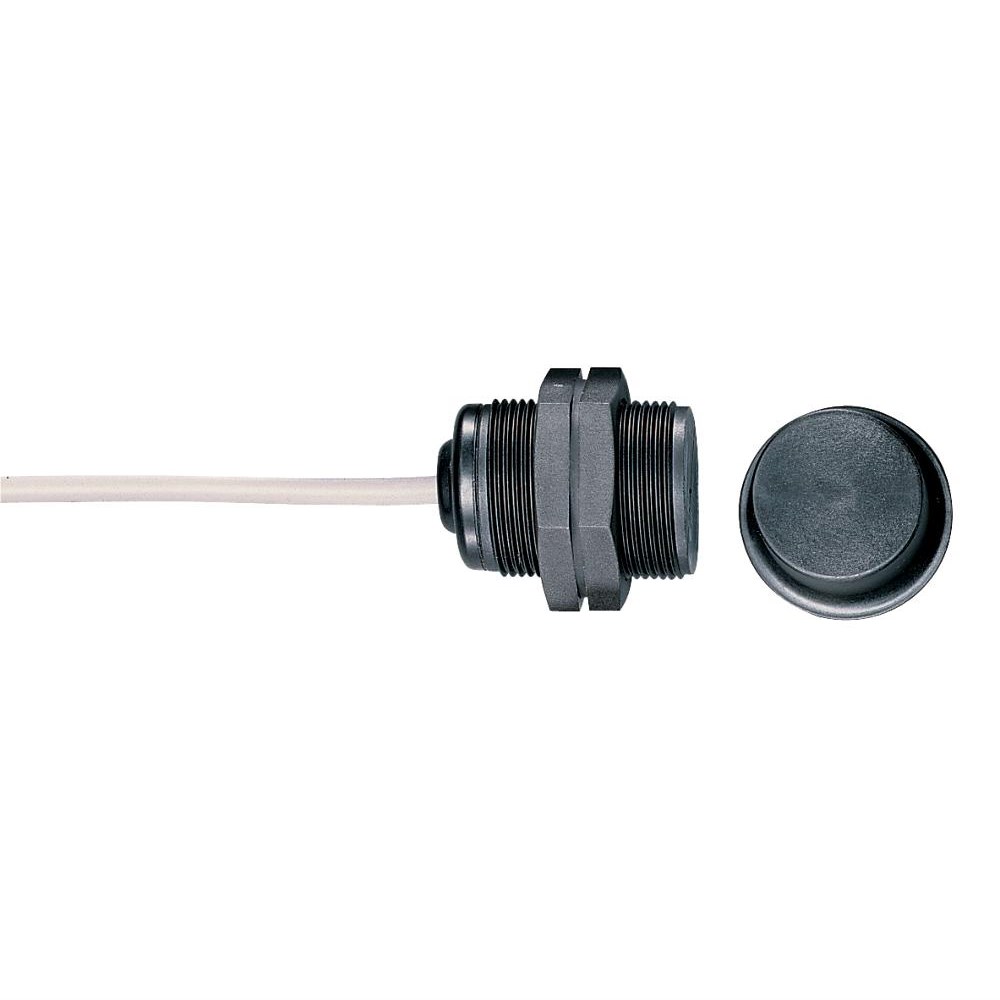

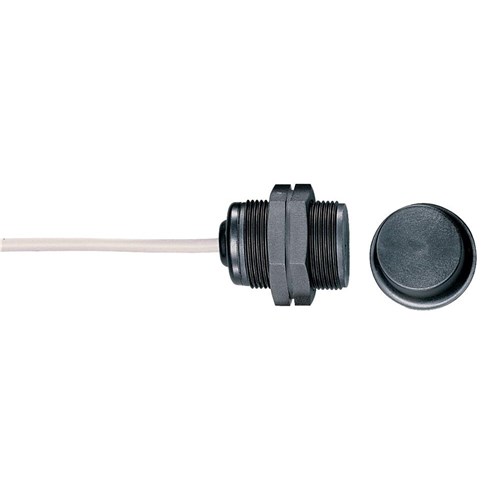

Schmersal 101178086 Magnetic Safety Sensor 1NO+2NC 10m Cable

Product Code: 101178086

  • Rated for 0.4 A, 10 W power
  • Durable IP67 thermoplastic housing
  • Operates in -25 to 70°C range
  • Magnet actuated with quasi-flush mount
  • Complies with EN and BG standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 303

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 303; BPS 300; BPS 303 SS
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
44mm
Weight
0.43kg
Cable Length
10m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67
