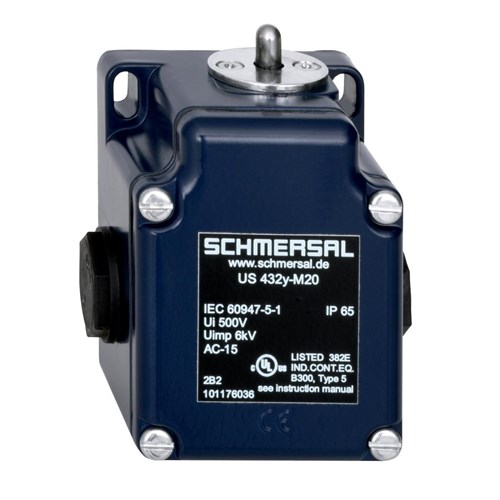

Schmersal 101176036 Position Switch Plunger NC Die Cast Light Alloy Silver Contact

Product Code: 101176036

  • Rated for 16 A current
  • Durable die cast light alloy housing
  • IP65 protection against dust and water
  • Complies with ENIEC 60947-5-1 standards
  • Plunger actuator with slow action switching
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal
Series
U 432 plunger S

Electrical

No. of N/C Contacts
2
Rated Insulation Voltage (Ui)
500V
Terminal Type
Screw
Thermal Test Current
16A

Mechanical

Actuator Type
Plunger
Contact Material
Silver
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
50mm
Height
91mm
Weight
0.31kg
Width
62mm

Environmental

IP Rating
IP65
Ambient Temperature
-20°C to 60°C
