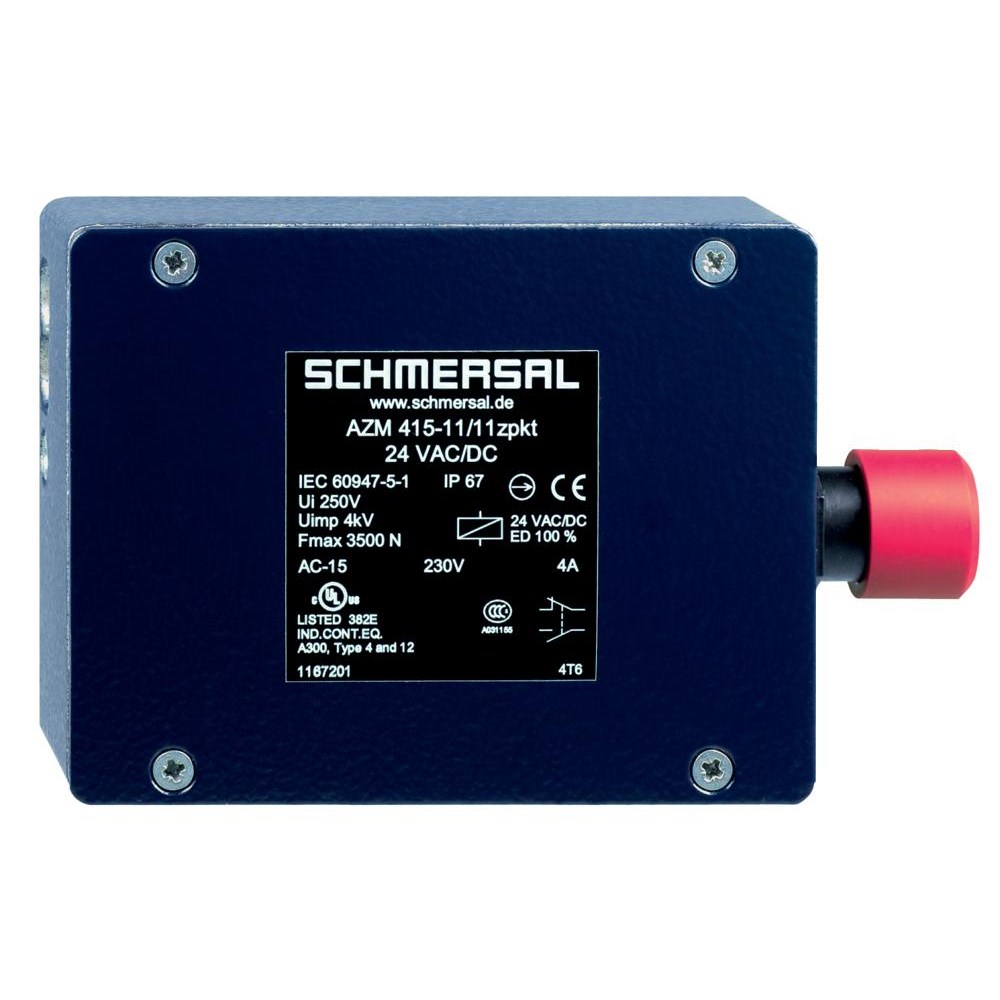

Schmersal 101174563 Solenid Interlock Switch 24VAC/VDC NO+NC

Product Code: 101174563

  • Durable aluminium housing, IP67 protection
  • Handles up to 4 A, 24 VAC/VDC power
  • NO+NC contact configuration
  • Long-lasting with 1M mechanical cycles
  • Complies with cULus, CCC, UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
1,055 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
