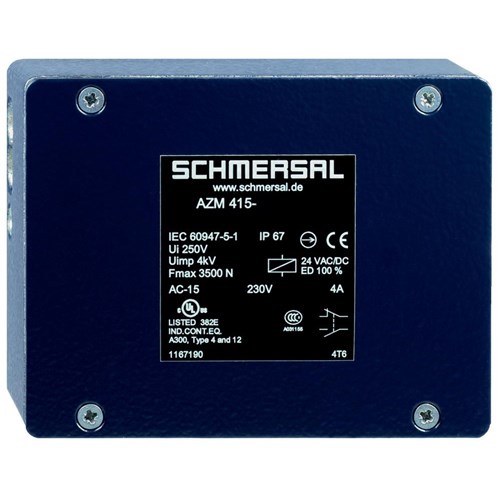

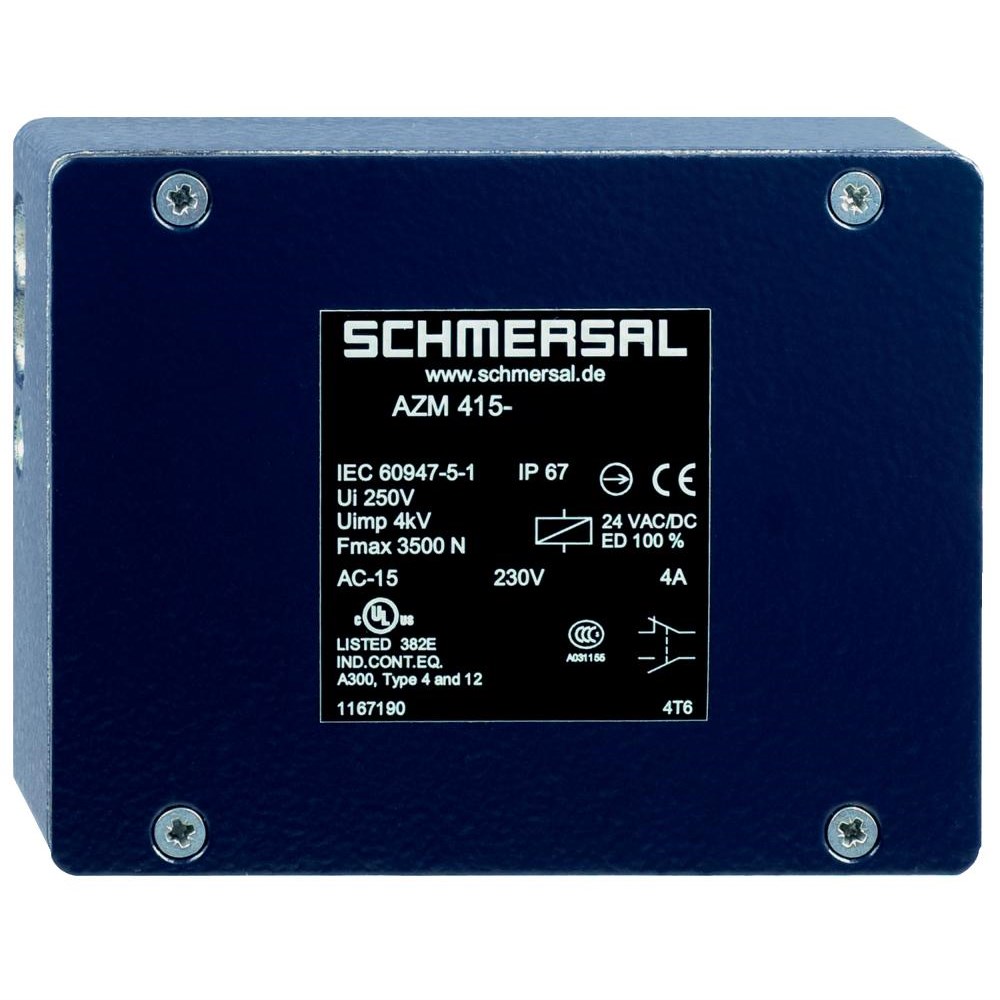

Schmersal 101174555 Solenid Interlock Switch 24VAC/VDC 3NC+1NO

Product Code: 101174555

  • 24 VAC/VDC operation for versatile use
  • Durable aluminium housing, IP67 rated
  • Long mechanical life of 1 million cycles
  • Contact configuration: 3NC+1NO
  • cULus and UKCA approved
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
950 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
