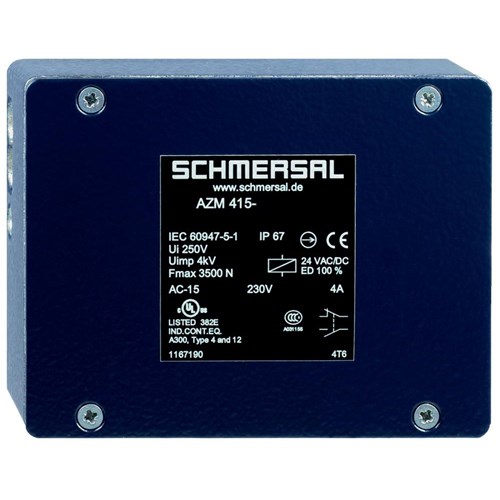

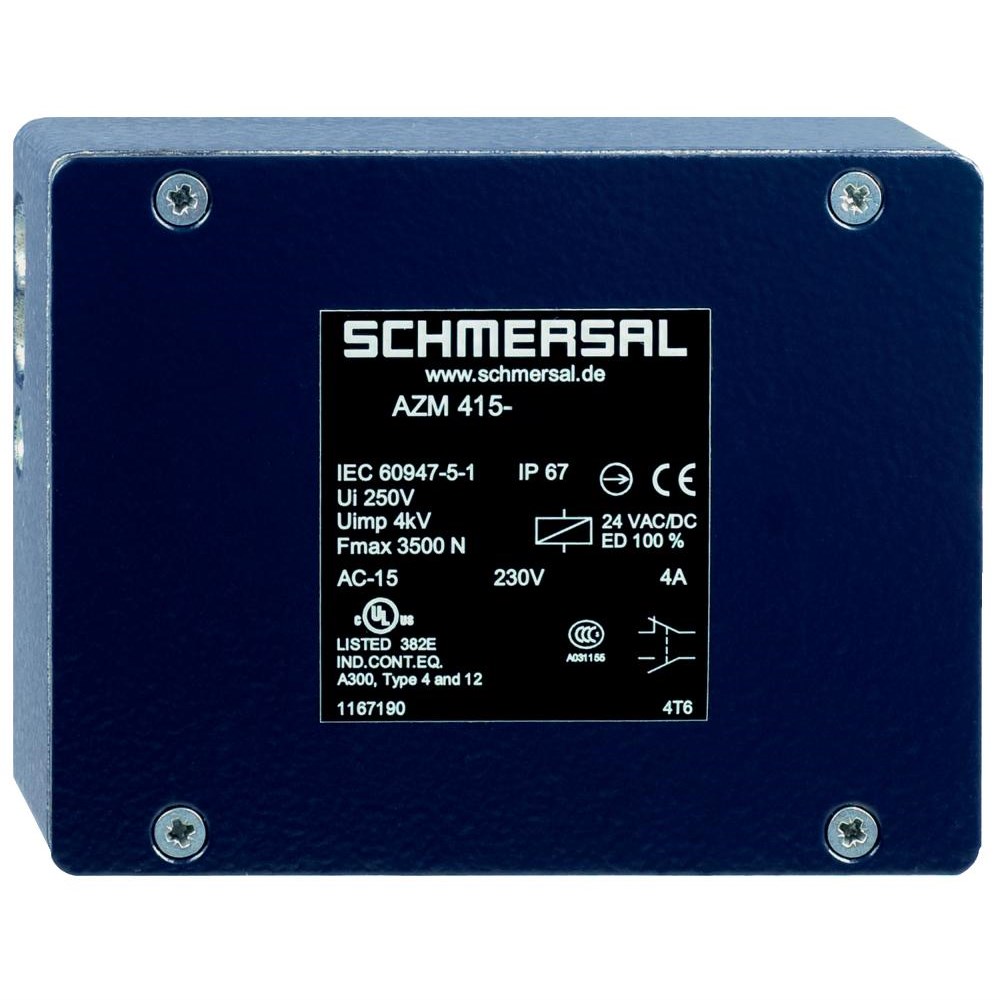

Schmersal 101174546 Solenid Interlock Switch 230VAC 3NC+1NO

Product Code: 101174546

  • Durable aluminium housing with IP67 protection
  • 3NC+1NO contact configuration for versatile use
  • High mechanical life of 1,000,000 cycles
  • Operates at a max temperature of 50°C
  • Complies with cULus and UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
3
No. of N/O Contacts
1
Rated Current (In)
0.25
Rated Voltage (Ur)
230 V AC
Terminal Type
Screw terminals

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
46.5 mm
Height
100 mm
Weight
910 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65
