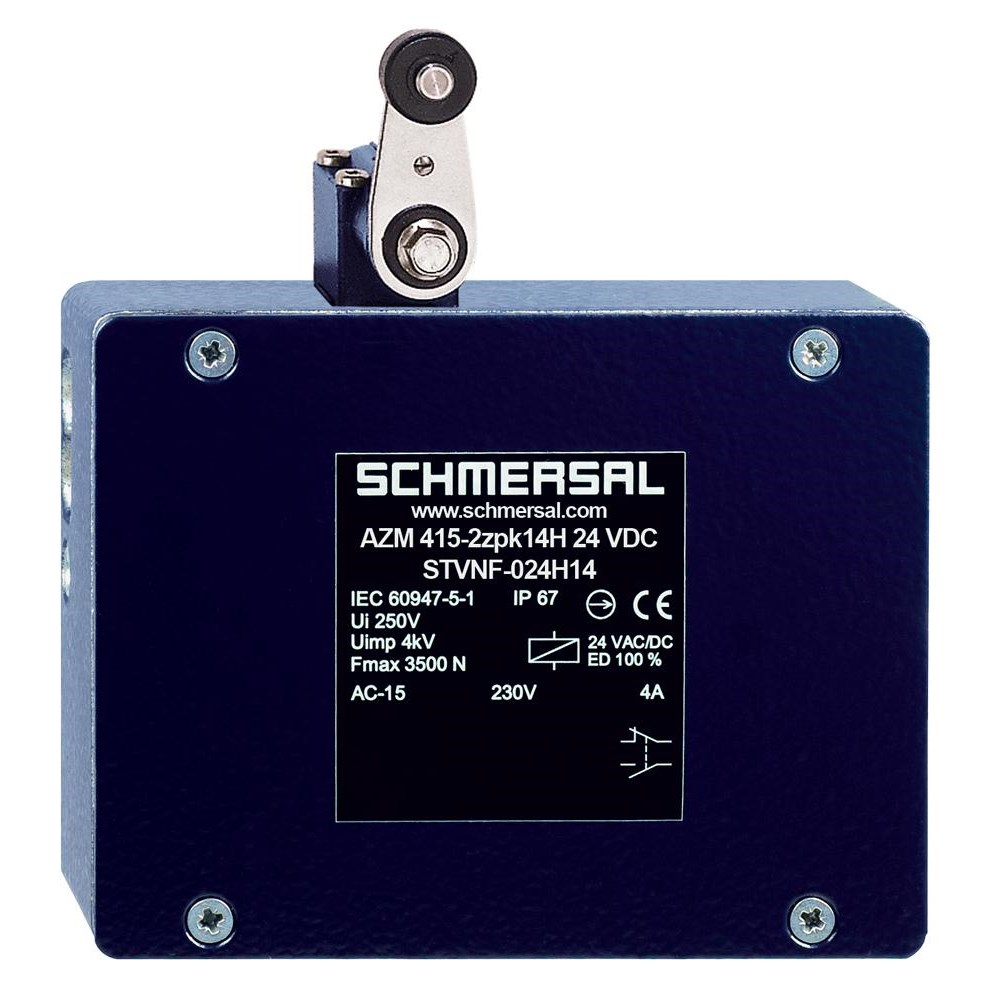

Schmersal 101174534 Solenid Interlock Switch 24VAC/VDC 2NC+2NO

Product Code: 101174534

  • Durable aluminium housing, IP67 protection
  • 2NC+2NO contacts for versatile use
  • Rated for 1 million mechanical cycles
  • Operates at 24 VAC/VDC, 10W power
  • Certified by cULus and UKCA standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Solenoid Interlock Switch
Brand
Schmersal
Series
AZM 415

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
0.25
Rated Voltage (Ur)
24 V AC/DC

Mechanical

Cable Entry
2 x M20 x 1.5
Guard Locking Force
3,500 N
Housing Material
Aluminium

Dimensions & Physical Data

Depth
56 mm
Height
144 mm
Weight
1,000 g
Width
130 mm

Environmental

Operating Temperature
-25_+50
IP Rating
IP67; IP65

Documents

IPD Product Catalogue V17
