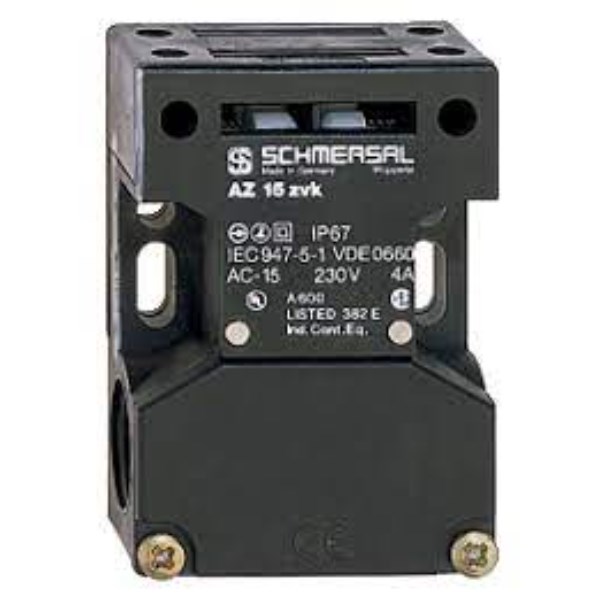

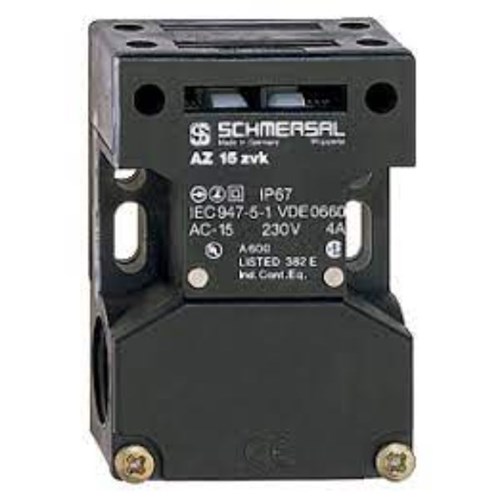

Schmersal 101174415 Safety Switch with Separate Actuator 250VAC, 300VDC

Product Code: 101174415

  • Suitable for 250 VAC, 300 VDC
  • Robust IP67 protection
  • Lightweight at 0.199 kg
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Safety Switch With Separate Actuator
Brand
Schmersal
Series
AZ 15

Electrical

No. of N/C Contacts
1
Rated Current (In)
0.166667
Rated Voltage (Ur)
230 V AC / 24 V DC
Terminal Type
Connector plug M12, 4-pole, (A-coding)

Mechanical

Housing Material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Dimensions & Physical Data

Depth
30 mm
Height
75 mm
Weight
100 g
Width
52 mm

Environmental

Operating Temperature
-30 to 80 °C
IP Rating
IP67

Documents

IPD Product Catalogue V17
