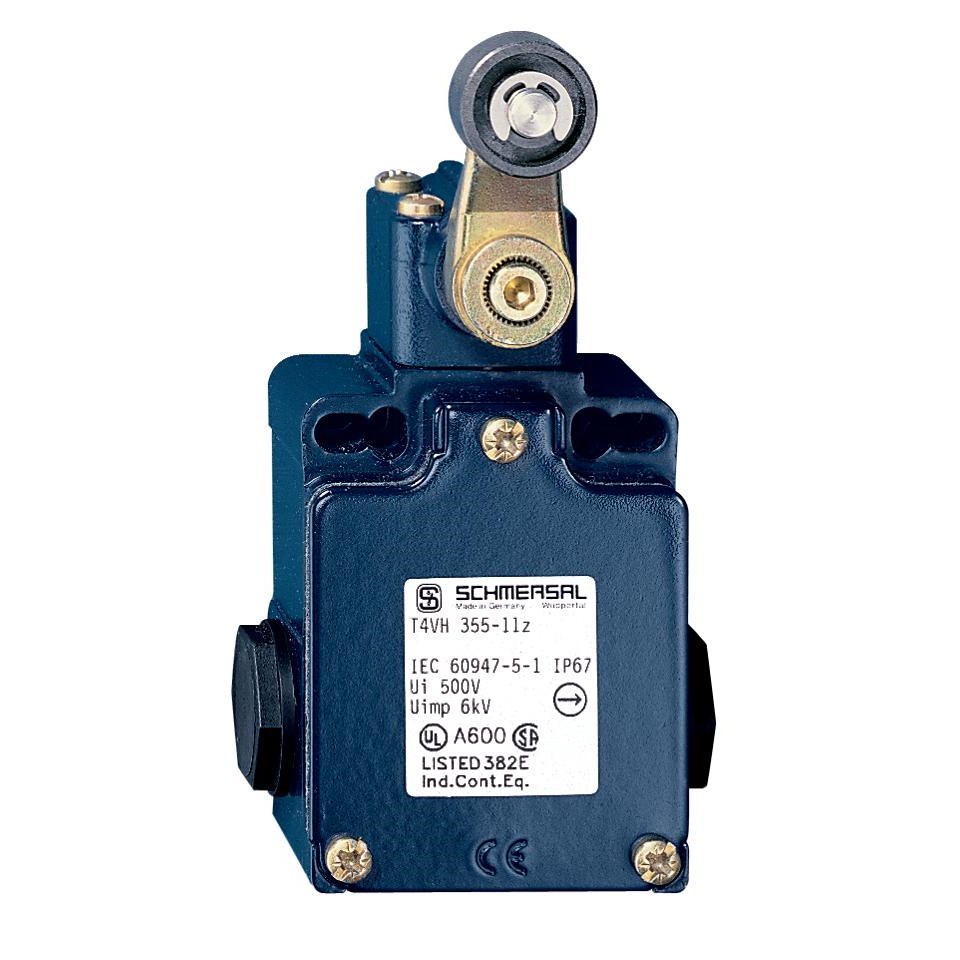

Schmersal 101174059 Position Switch with Safety Function 230VAC 1NO+1NC

Product Code: 101174059

  • Rated for 230 VAC and 4 A
  • Durable die-cast light alloy housing
  • High protection: IP65 & IP67 rated
  • Long lifespan: 30 million cycles
  • Operates in -30 to 80°C range
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Position Switch
Brand
Schmersal

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Insulation Voltage (Ui)
250 VAC 500V
Terminal Type
Screw terminals
Thermal Test Current
10A

Mechanical

Actuator Type
Roller lever
Housing Material
Light alloy die-casting

Dimensions & Physical Data

Depth
60.6mm
Height
129.5mm
Weight
0.31kg
Width
66.7mm

Environmental

IP Rating
IP65,IP67
Ambient Temperature
-30°C to 80°C

Documents

IPD Product Catalogue V17
