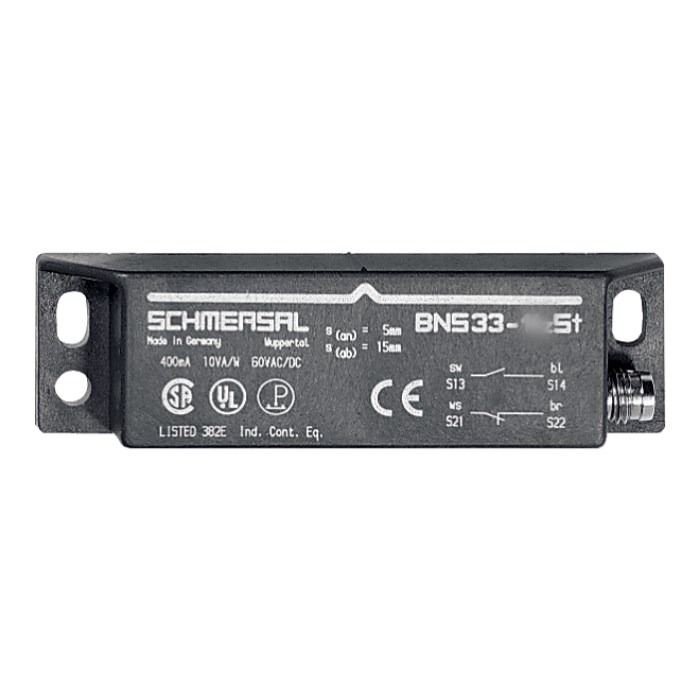

Schmersal 101173053 Magnetic Safety Sensor

Product Code: 101173053

  • Operates at 60 VAC and 0.25 A
  • Durable with 25 million cycles
  • IP67 rated for dust and water resistance
  • Compact size: 13 x 88 x 25 mm
  • Made from reinforced thermoplastic
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 33

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
0
Plug Type
Connector M8
Rated Current (In)
0.25A
Rated Voltage (Ur)
60V AC

Mechanical

Actuator Type
BPS 33; BPS 33-2326
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
13mm
Height
25mm
Weight
0.035kg
Width
88mm
Cable Length
1m

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
