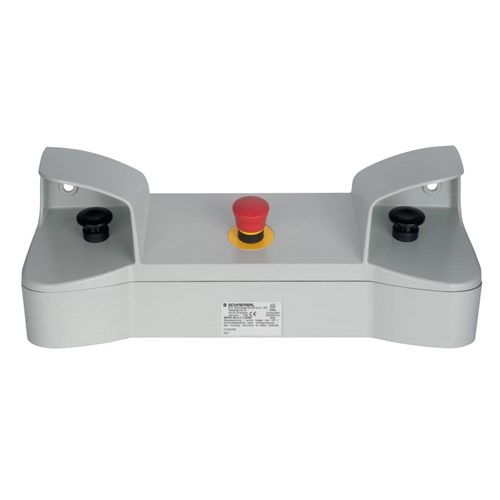

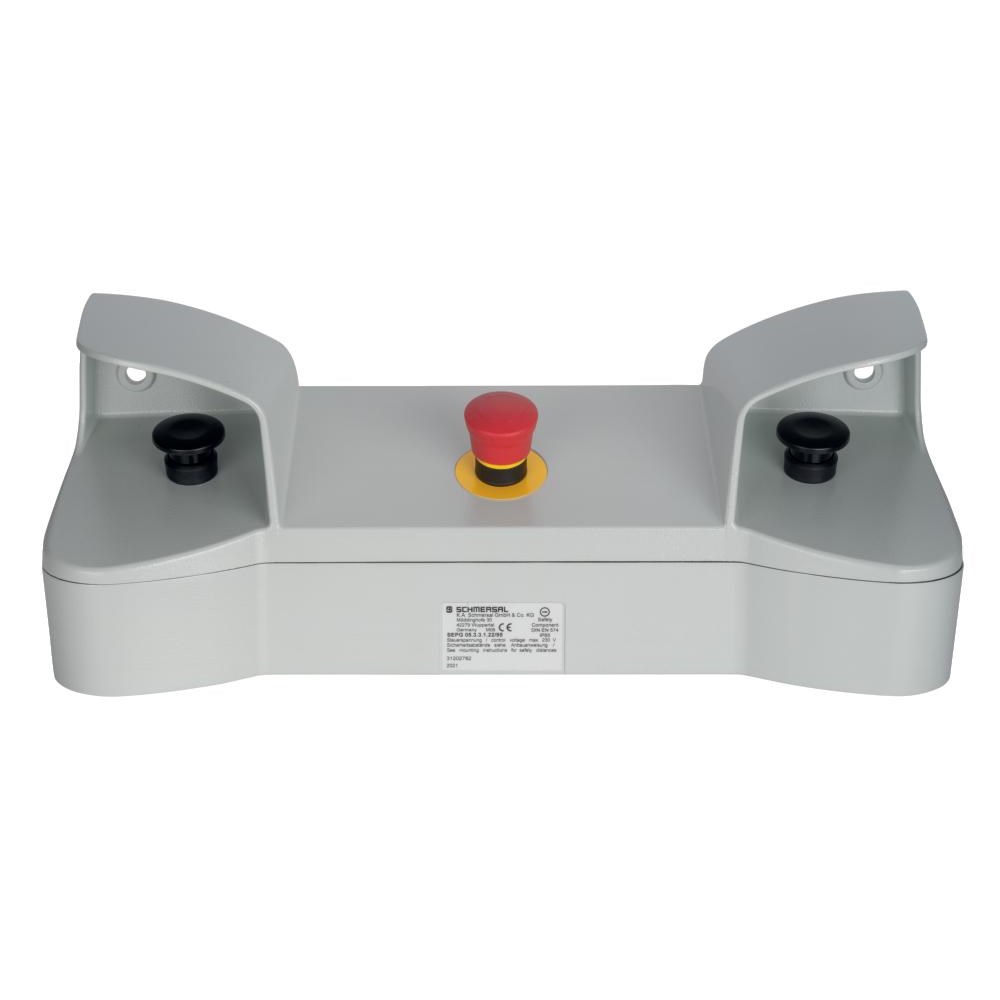

Schmersal 101172761 2-Hand Control Panel

Product Code: 101172761

  • 250 VAC, 8 A rated for reliable performance
  • Durable aluminium housing with IP65 protection
  • Long mechanical life of 10 million cycles
  • Complies with EN IEC 60947-5-1 standards
  • M20 x 1.5 mm screw connection for easy install
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Two - Hand Control Panel
Brand
Schmersal
Series
SEPG05.3

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
Rated Current (In)
8A (AC-15), 5A (DC-13)
Rated Voltage (Ur)
250V AC (AC-15), 24V DC (DC-13)

Mechanical

Actuator Type
Pushbutton
Housing Colour
RAL 7004
Housing Material
Aluminium

Dimensions & Physical Data

Depth
160mm
Height
184mm
Weight
4.3kg
Width
494mm

Environmental

IP Rating
IP65

Documents

IPD Product Catalogue V17
