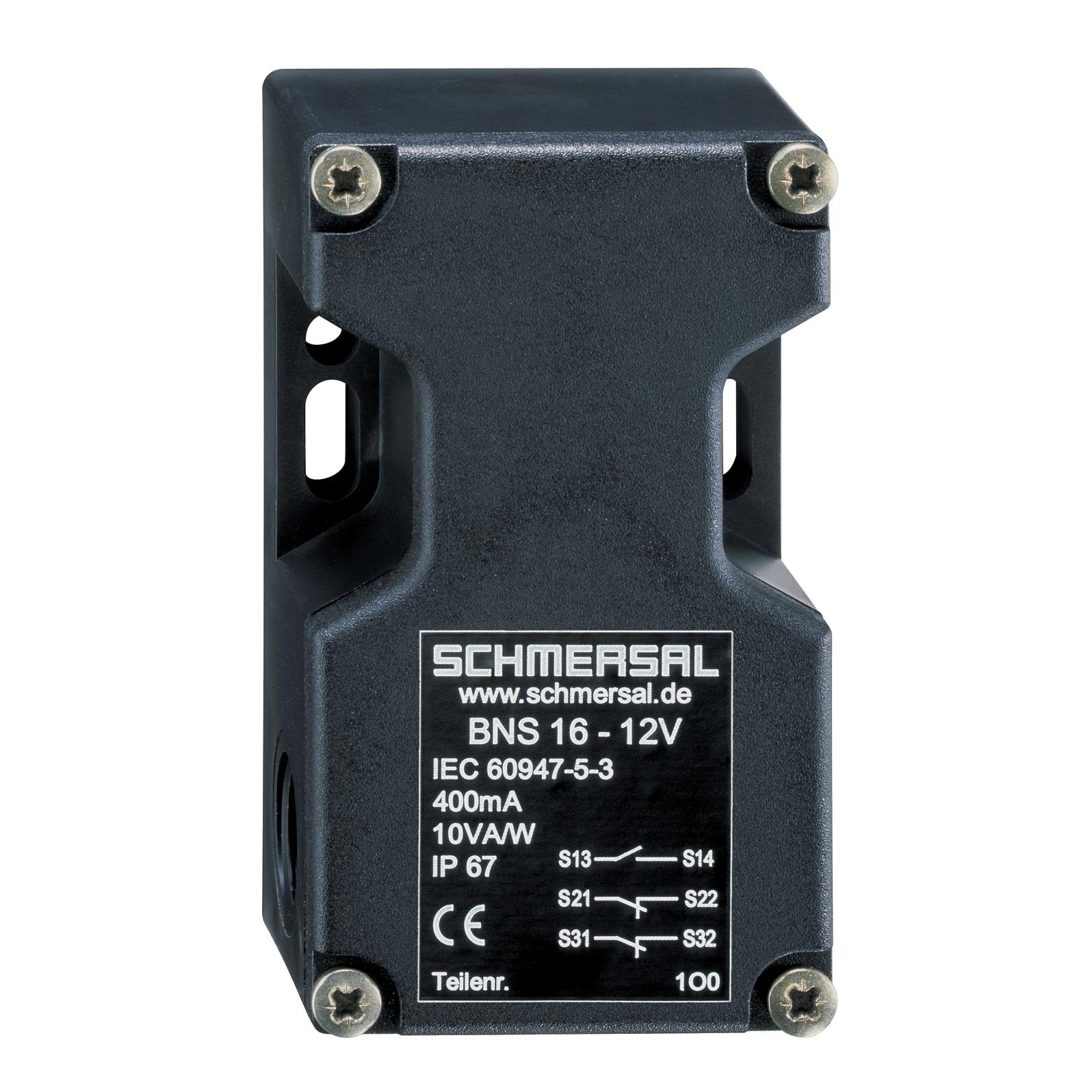

Schmersal 101172565 Magnetic Safety Sensor

Product Code: 101172565

  • Operates at 100 VAC with 0.4 A current
  • Durable design with IP67 protection
  • Long mechanical life of 25 million cycles
  • Robust glass fibre reinforced thermoplastic housing
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A
Rated Voltage (Ur)
100V AC/DC

Mechanical

Actuator Type
BPS 16
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
39.5mm
Height
93mm
Weight
0.15kg
Width
55mm

Environmental

Operating Temperature
-25°C to 70°C
IP Rating
IP67

Documents

IPD Product Catalogue V17
