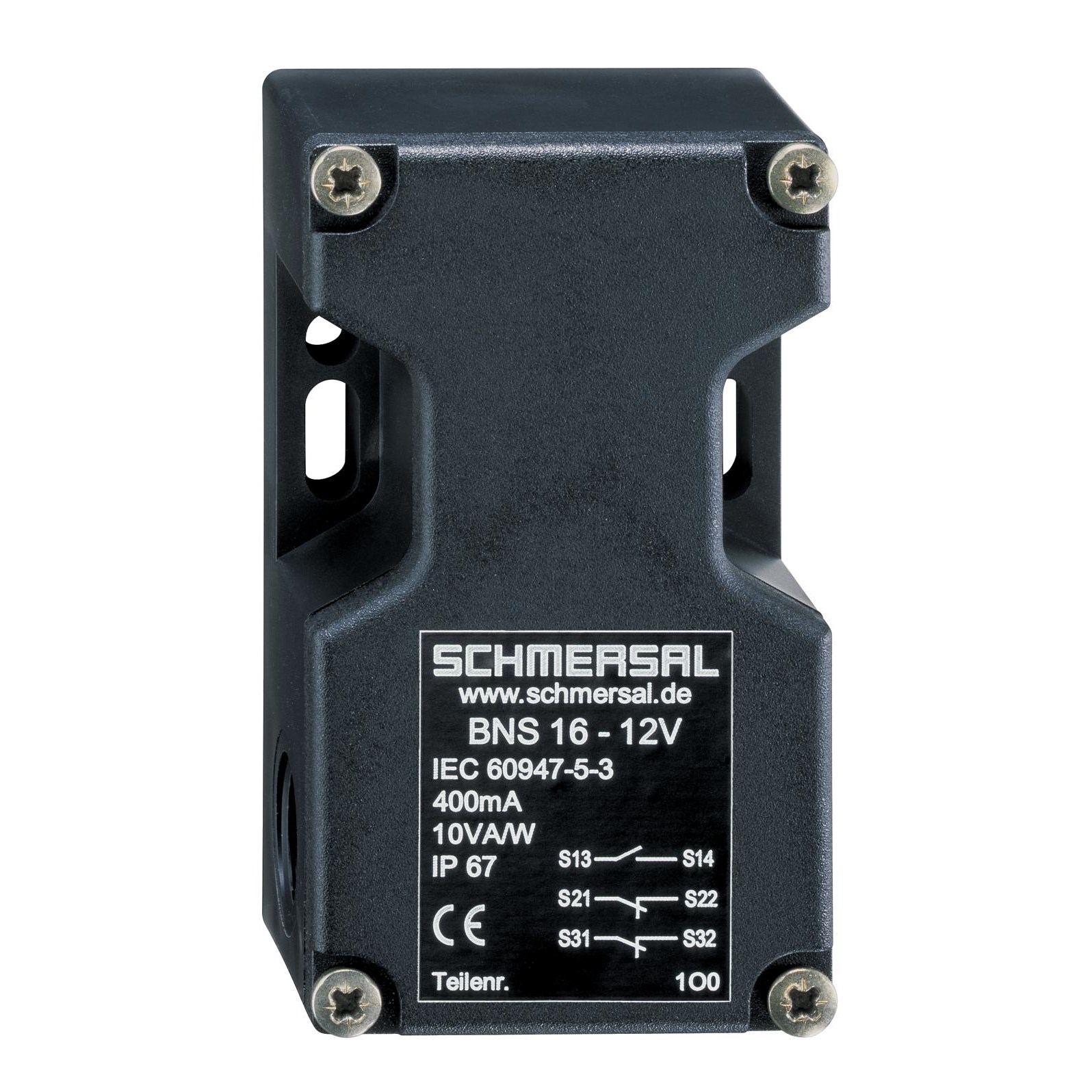

Schmersal 101172563 Magnetic Safety Sensor

Product Code: 101172563

  • Operates at 100 VAC, 0.4 A, and 10 W
  • Durable with 25 million cycle life
  • IP67 rated for robust protection
  • Works in -25 to 70°C temperature range
  • Compact size: 39x52x90 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Magnetic Safety Sensor
Brand
Schmersal
Series
BNS 16

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
1
Rated Current (In)
0.4A (max.switching)
Rated Voltage (Ur)
100V AC/DC (max.switching)
Actuating Direction
Cover-side (top) sensing

Mechanical

Actuator Type
BPS 16
Housing Material
Glass-fibre, reinforced thermoplastic

Dimensions & Physical Data

Depth
39.5mm (length)
Height
93mm
Weight
0.00015kg
Width
55mm

Environmental

IP Rating
IP67
Ambient Temperature
-25°C to 70°C
